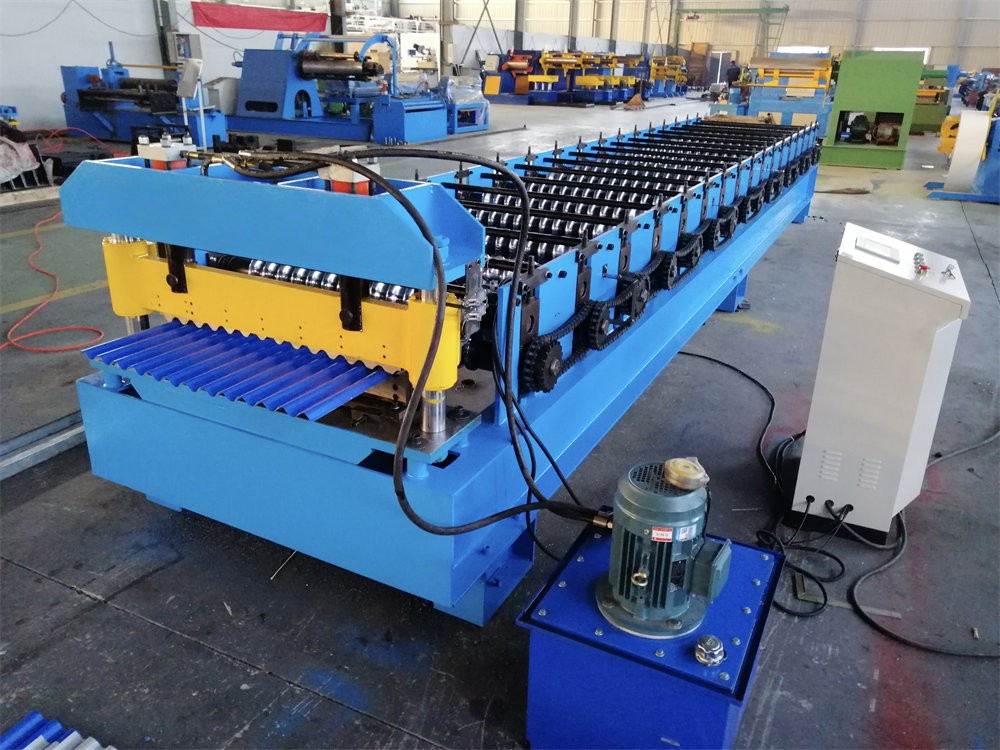

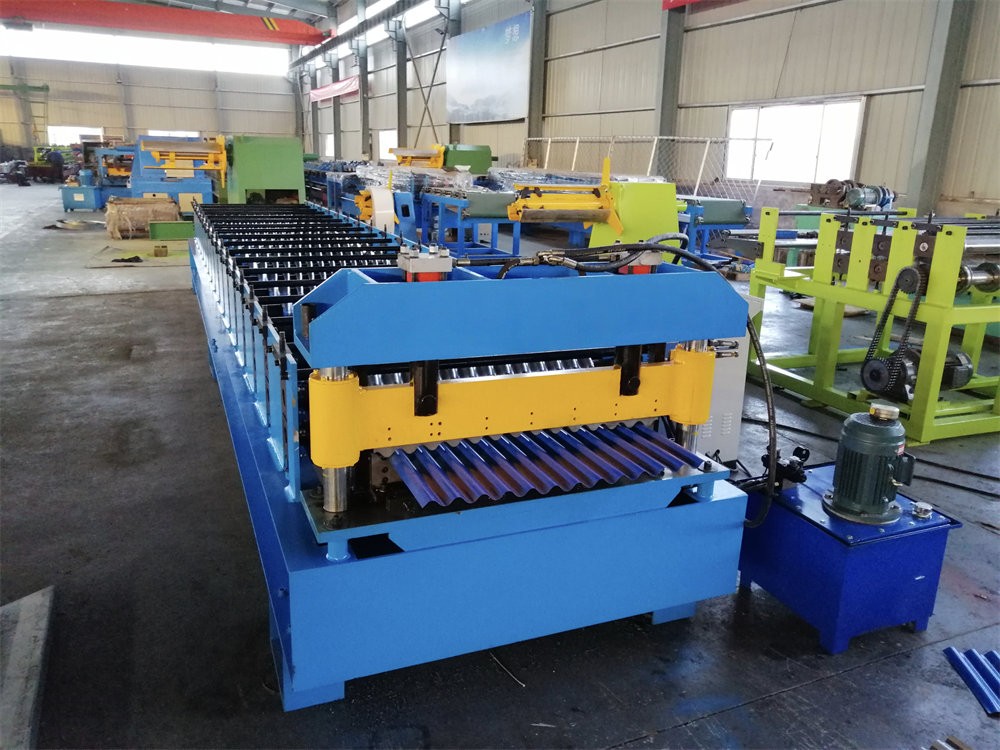

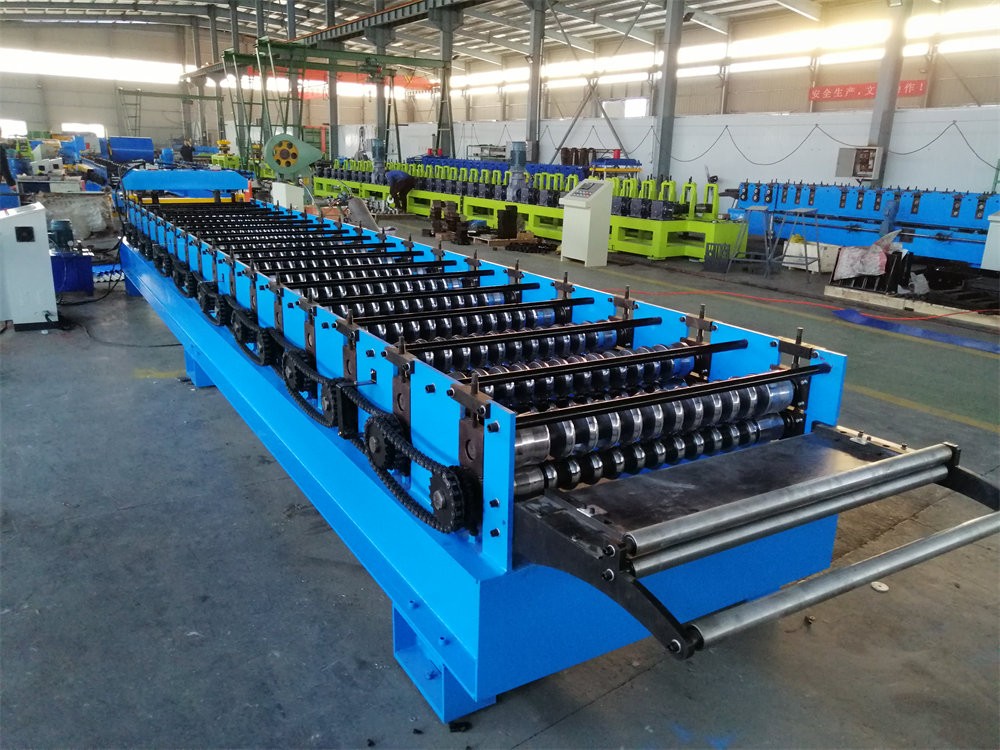

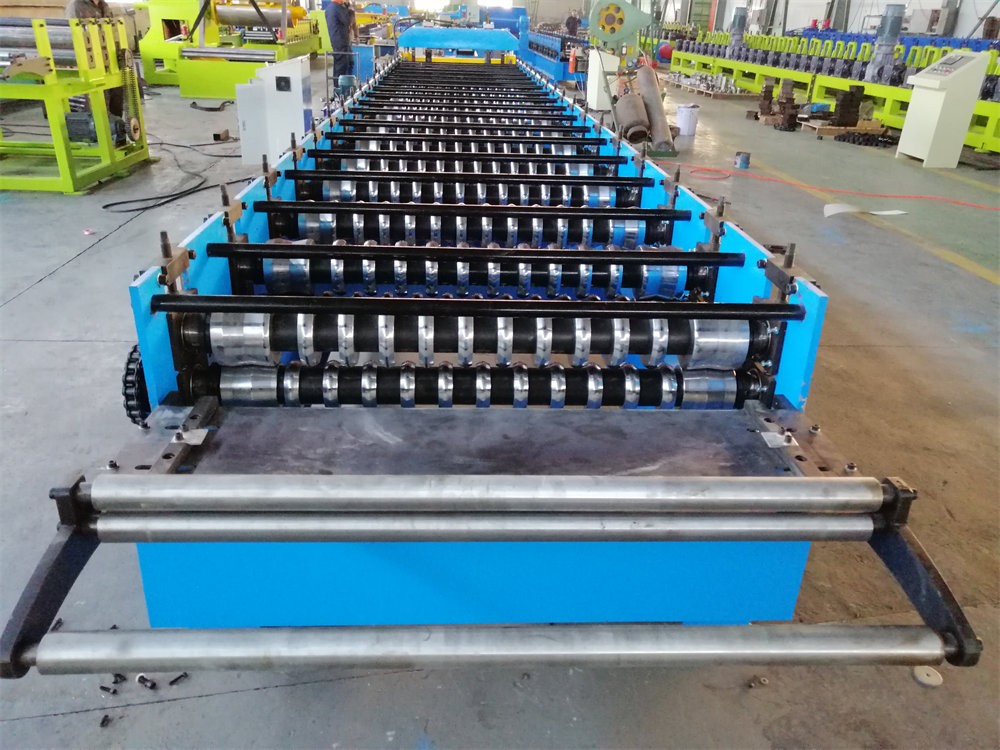

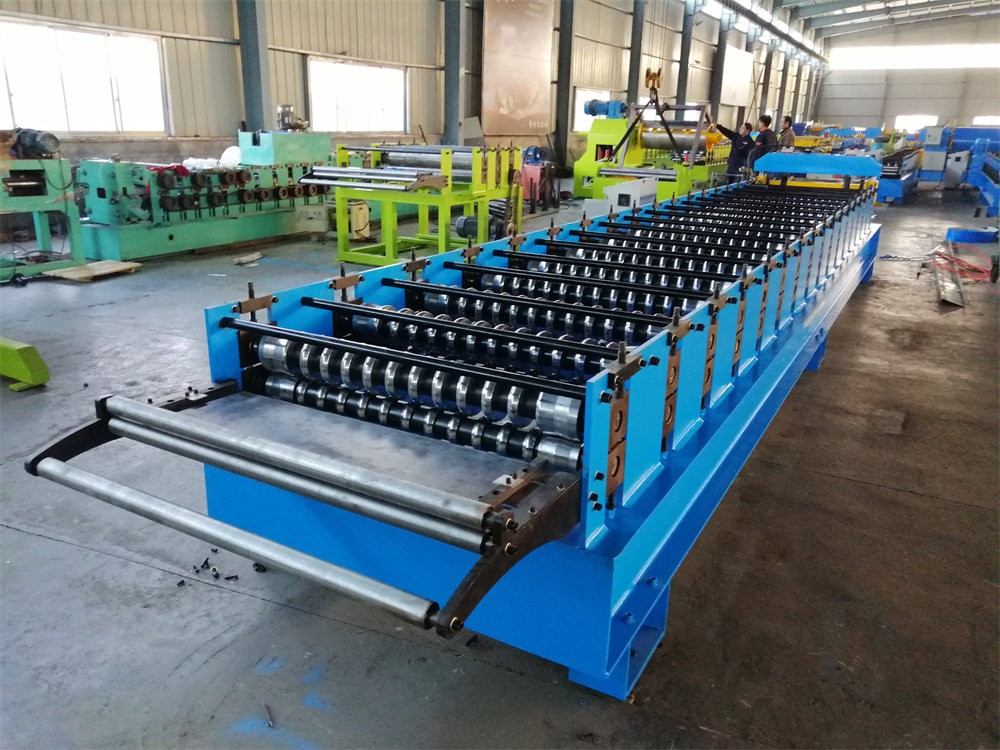

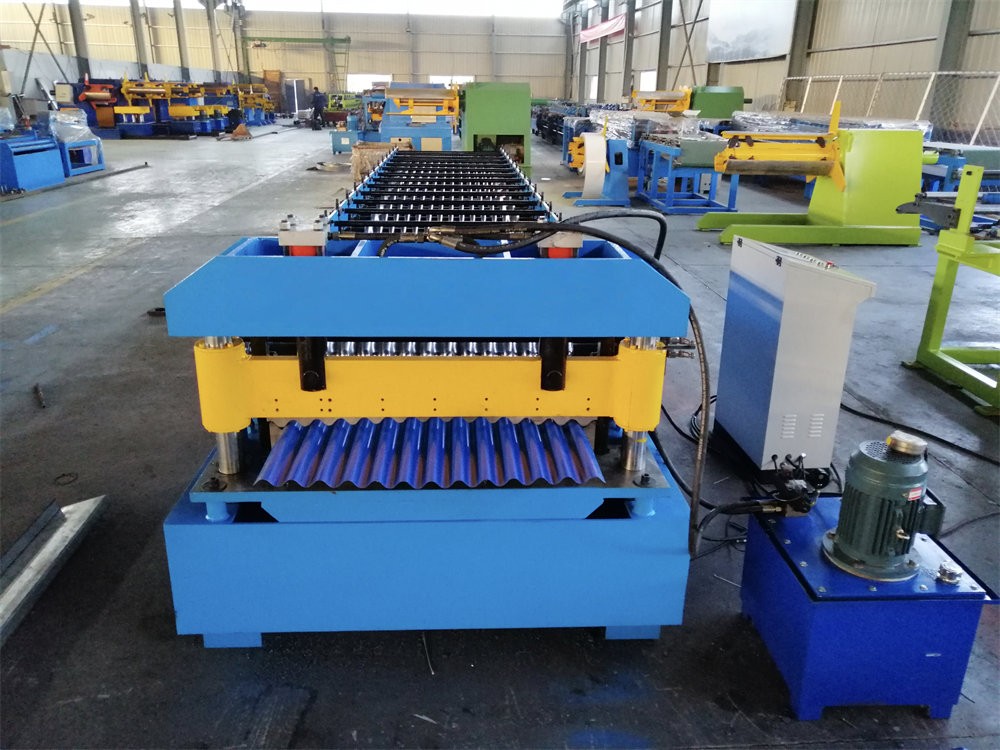

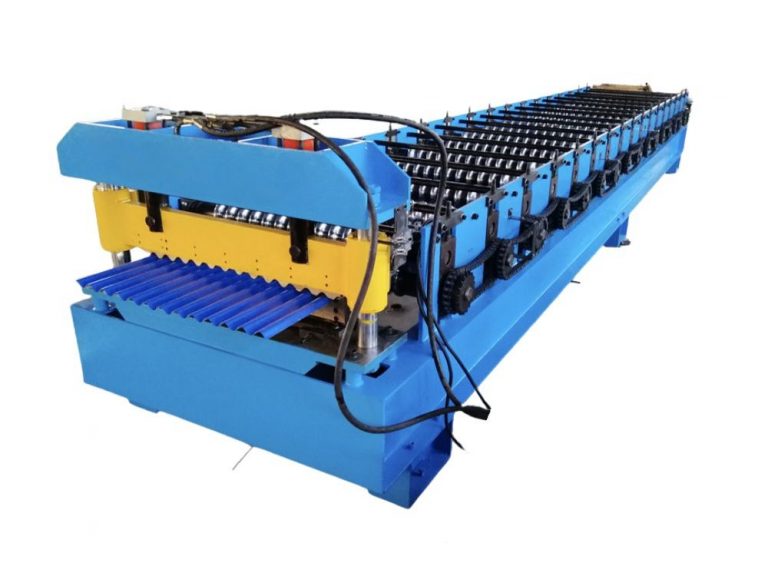

Product introduction:
Corrugation roll forming machine are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villags, sanatoriums, hotels, villas, residences, and different kinds of greenhouses. It is also named corrugated sheet roll forming machine.
Components:
The components of this roof panel machine are: manual/automatic decoiler, roll forming machine, plc control system, hydraulic part, cutting part and discharge table.
Characteristic:
The machine has lightweight, high strength, color-rich, convenient construction, earthquake, fire, rain, long life, maintenance-free characteristics.
(1) The roof tile roll forming machine using a high level of automatic control software, production information management.
(2) The entire unit automation control system uses highly integrated network, enabling superior performance automation systems.
(3) The pressure-watt machine also has the operation, maintenance, maintenance and mechanical commissioning mold advantages of easy replacement.
Parameter
|
Suitable Material |
Material |
GI, PPGI, PPGL |
|
Width |
1000 mm |
|
|
Thickness |
0.2-0.7 mm |
|
|
Material of rollers |
High grade 45# forged steel, surface hard chromium plating |
|
|
Rows of rollers |
16 stations |
|
|
Material of shafts |
High grade 45# forged steel |
|
|
Diameter of shafts |
70 mm |
|
|
Material of blade |
Cr12 Heat Treatment |
|
|
Cutting Mode |
Hydraulic Guide Column |
|
|
Speed |
15-20 m/min |
|
|
Side plate thickness |
16 mm |
|
|
Chain size |
1 inch |
|
|
Total power |
4 kw |
|
|
Voltage |
380V 50HZ 3Phase |
|
|
Appearance size (About) |
7200mm*1600mm*1300mm |
|
|
Weight(About) |
4 tons |
|
|
Electronic control system |
PLC + Touch Screen |
|
|
Color |
Blue, green or yellow or as your requirement |
|
|
Service life |
20 years |
|
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 20 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 30 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. （include chain, bearing, roller,oil pipe, counting wheel） If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
Price: 7000-9000$/set
Min Order: 1set
Place of Origin: Hebei, China
Certification: CE
