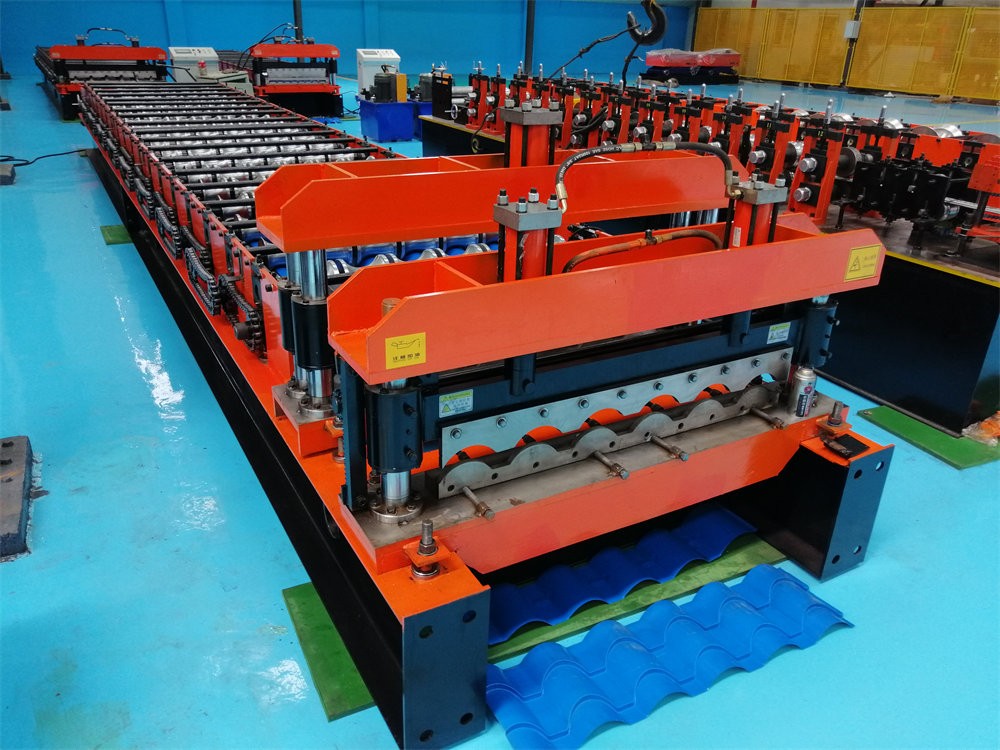

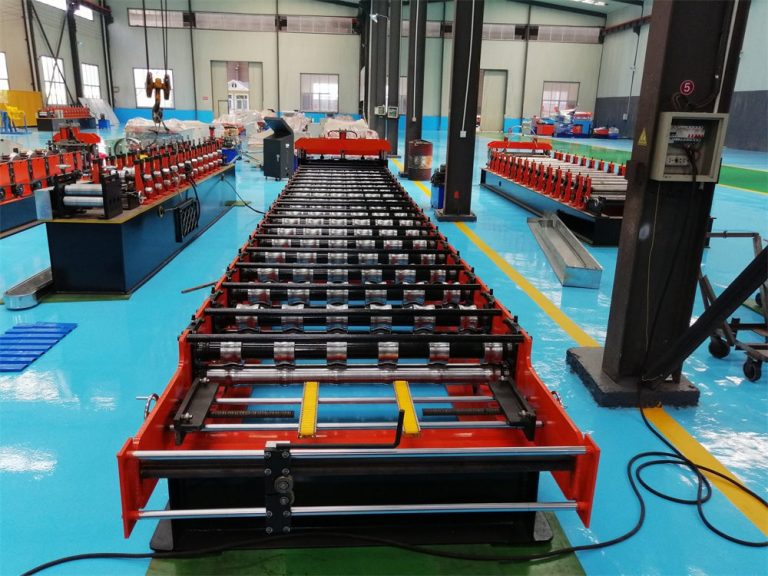

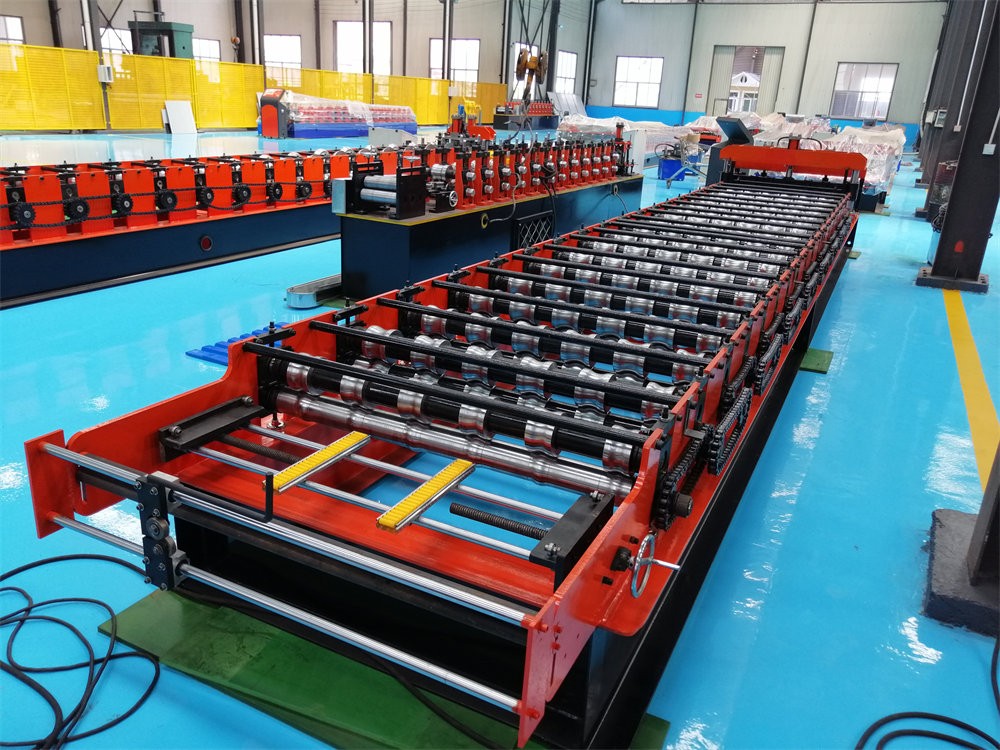

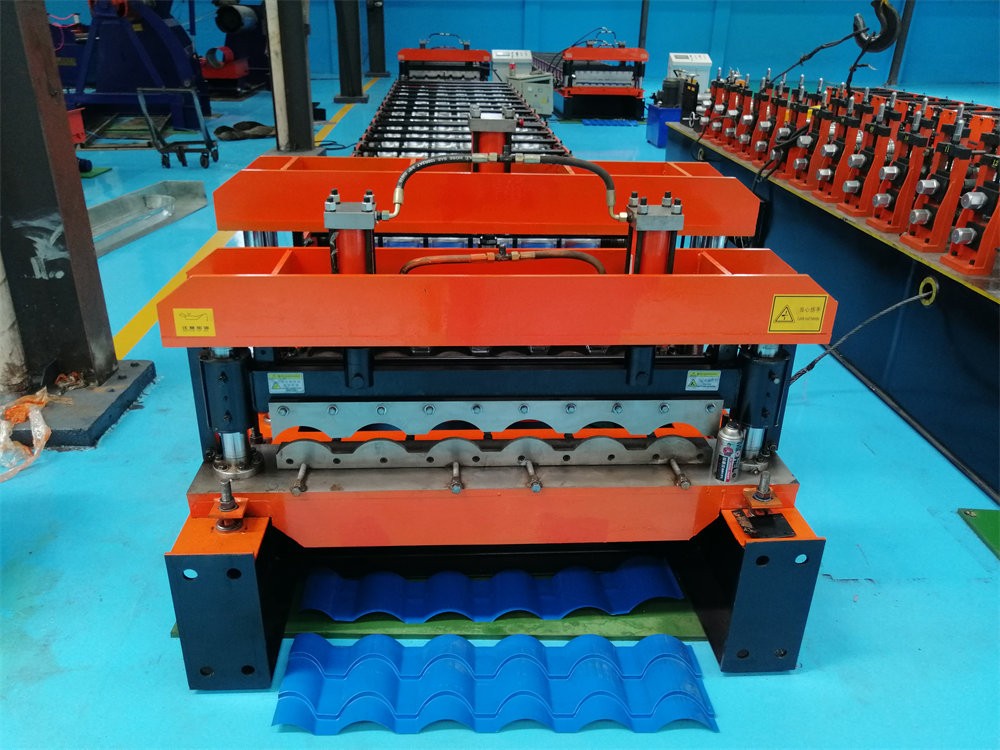

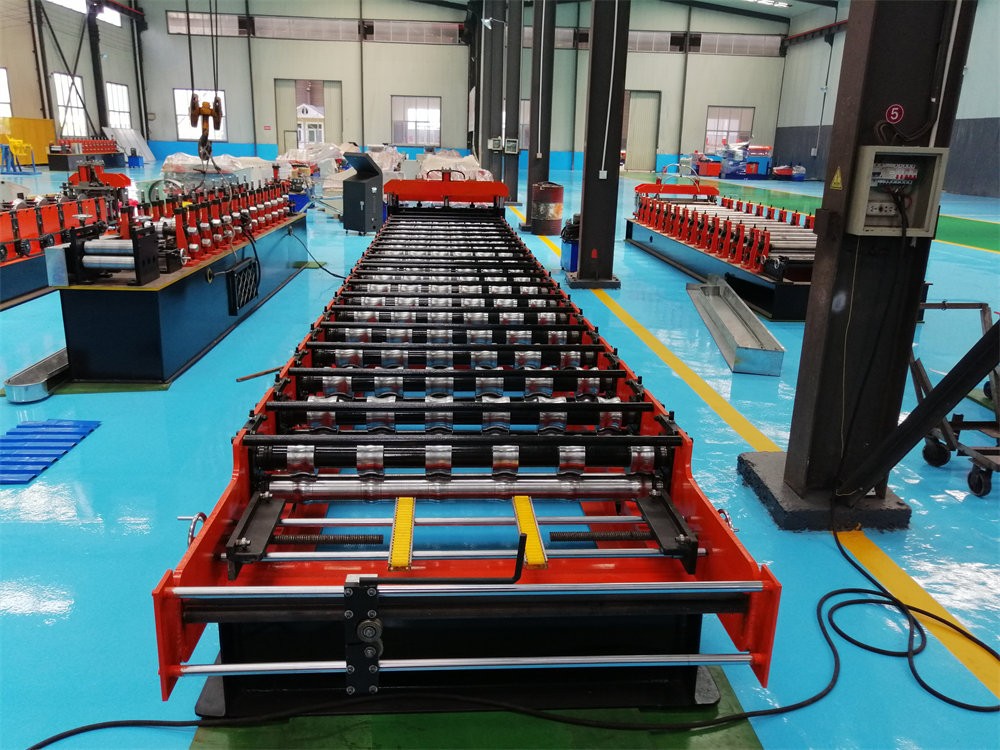

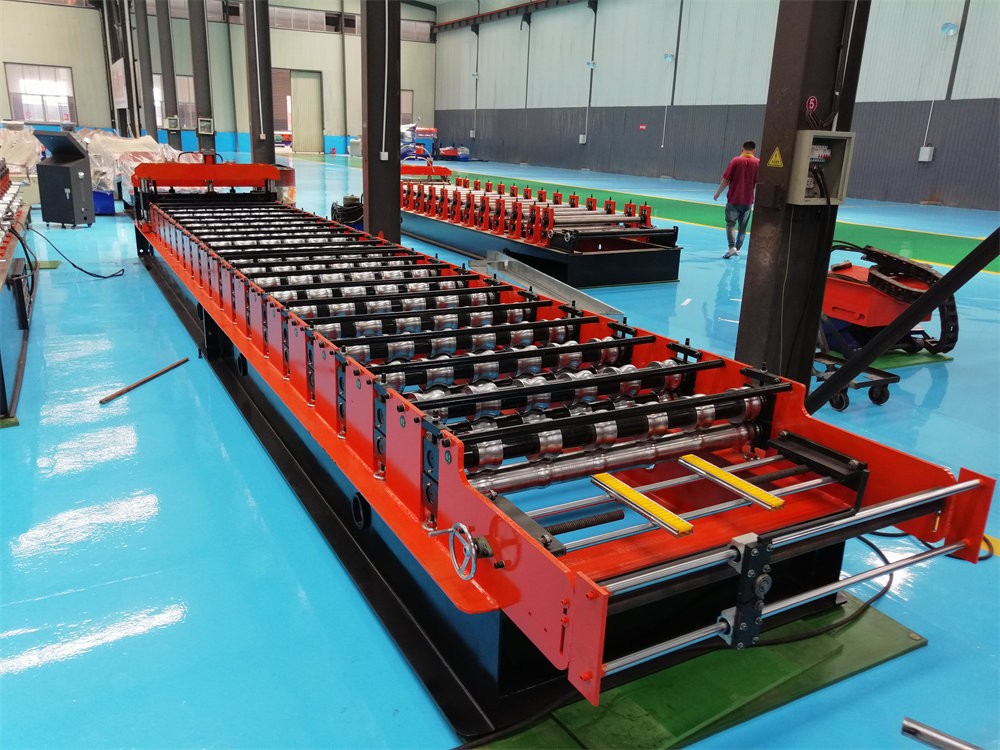

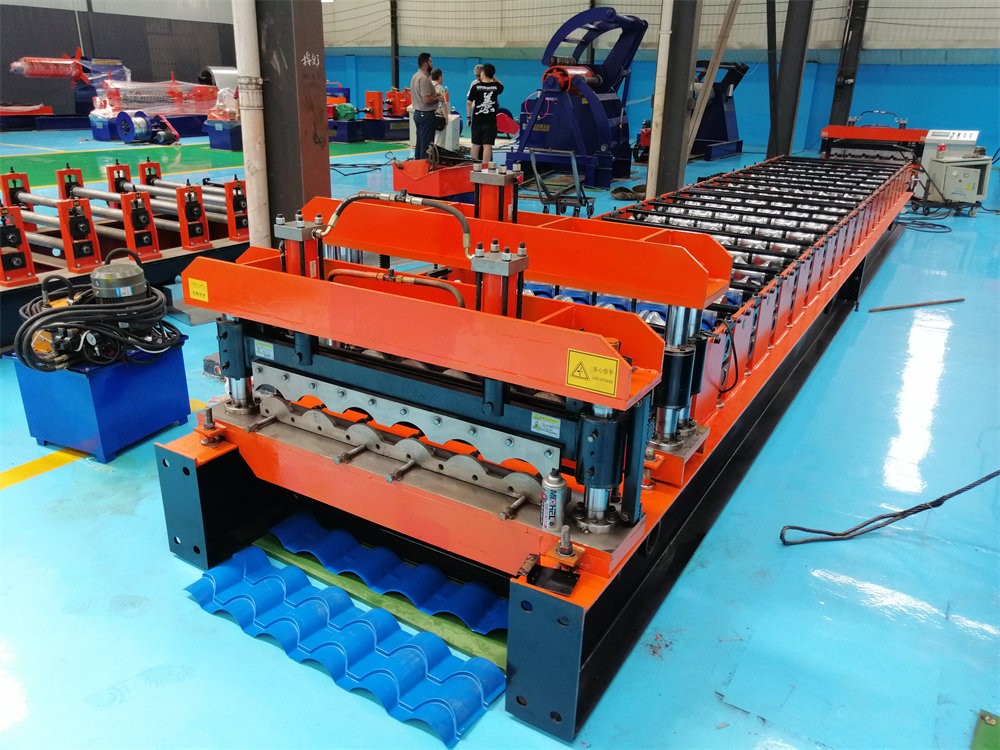

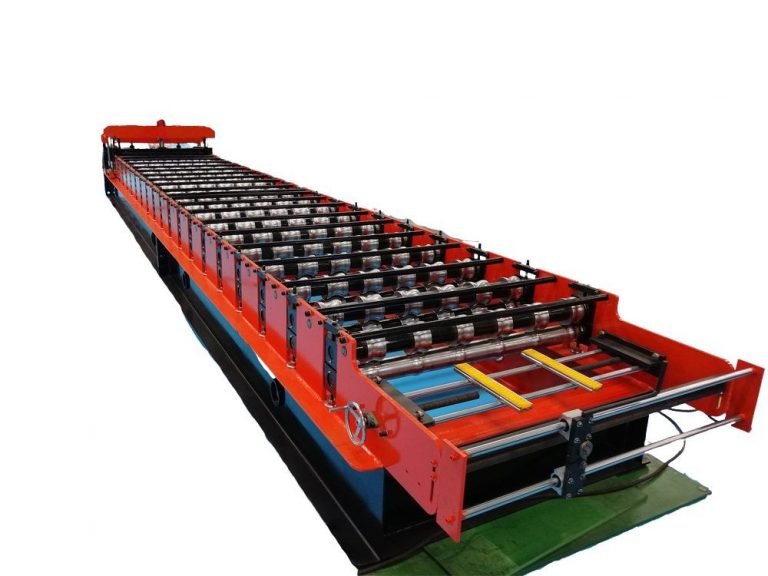

Product introduction:
The glazed tile roll forming machine products beautiful appearance of smooth, paint pattern uniform, high strength, durable, widely used in industrial and civil buildings, such as factories, warehouses, machine garages, hangars, stadiums, exhibition halls, theaters and other room surfaces and wall.
Components:
The components of the glazed tile machine are: manual/automatic decoiler, roll forming machine, plc control system, hydraulic part, cutting part and discharge table.
Characteristic:
- Is made of high strength steel plate for the base material,
and the most advanced design and roll forming. It has excellent structural properties.
- Glazed tile roll forming machine use less power, saving energy consumption, reducing the cost of production
- High efficiency, energy saving, production speed, can be used continuously
- Small volume, light weight, mobile transportation is convenient, small footprint
Parameter
|
Suitable Material |
Material |
GI, PPGI, PPGL |
|
Width |
1220 mm |
|
|
Thickness |
0.3-0.7 mm |
|
|
Material of rollers |
High grade 45# forged steel, surface hard chromium plating |
|
|
Rows of rollers |
18 stations |
|
|
Material of shafts |
High grade 45# forged steel |
|
|
Diameter of shafts |
70 mm |
|
|
Material of cutting blade |
Cr12 Heat Treatment |
|
|
Cutting Mode |
Hydraulic Guide Column |
|
|
Speed |
3-4 m/min |
|
|
Side plate thickness |
16 mm |
|
|
Chain size |
1 inch |
|
|
Total power |
7.5 kw |
|
|
Voltage |
380 V 50 HZ 3 Phase |
|
|
Appearance size (About) |
8000mm*1500mm*1500mm |
|
|
Weight(About) |
5 tons |
|
|
Length measurement |
Encoder |
|
|
Control mode |
PLC |
|
|
Operating mode |
Button + Touch screen |
|
|
Color |
Blue, green or yellow or as your requirement |
|
|
Service life |
20 years |
|
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 20 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 30 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. （include chain, bearing, roller,oil pipe, counting wheel） If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
Price: 11000-12500$/set
Min Order: 1set
Place of Origin: Hebei, China
Certification: CE
