Product information
C purlin roll forming machine is one of the basic type on tile roll forming machine. It was widely used in the Standard Steel plant and simple steel house. Especially the hydraulic power system’s using makes it faster than other ordinary machines.
Components of C/Z purlin roll forming machine

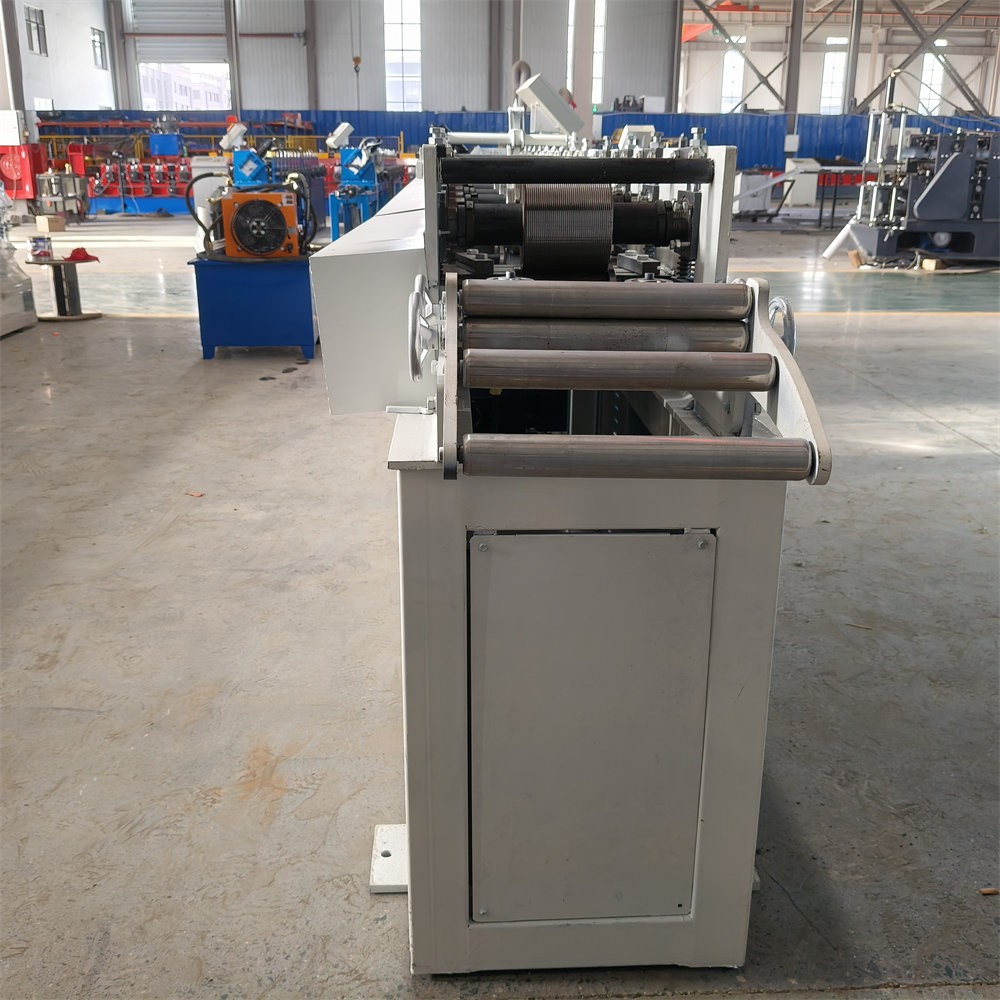

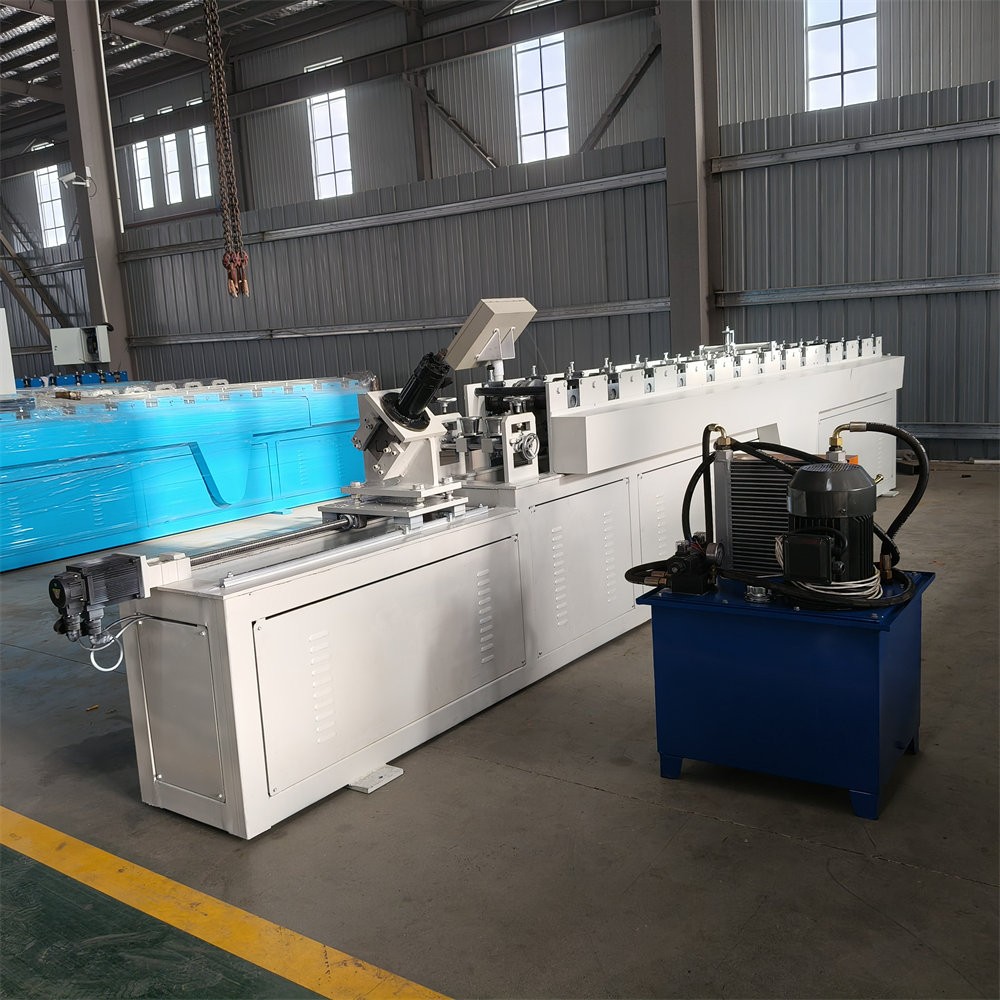

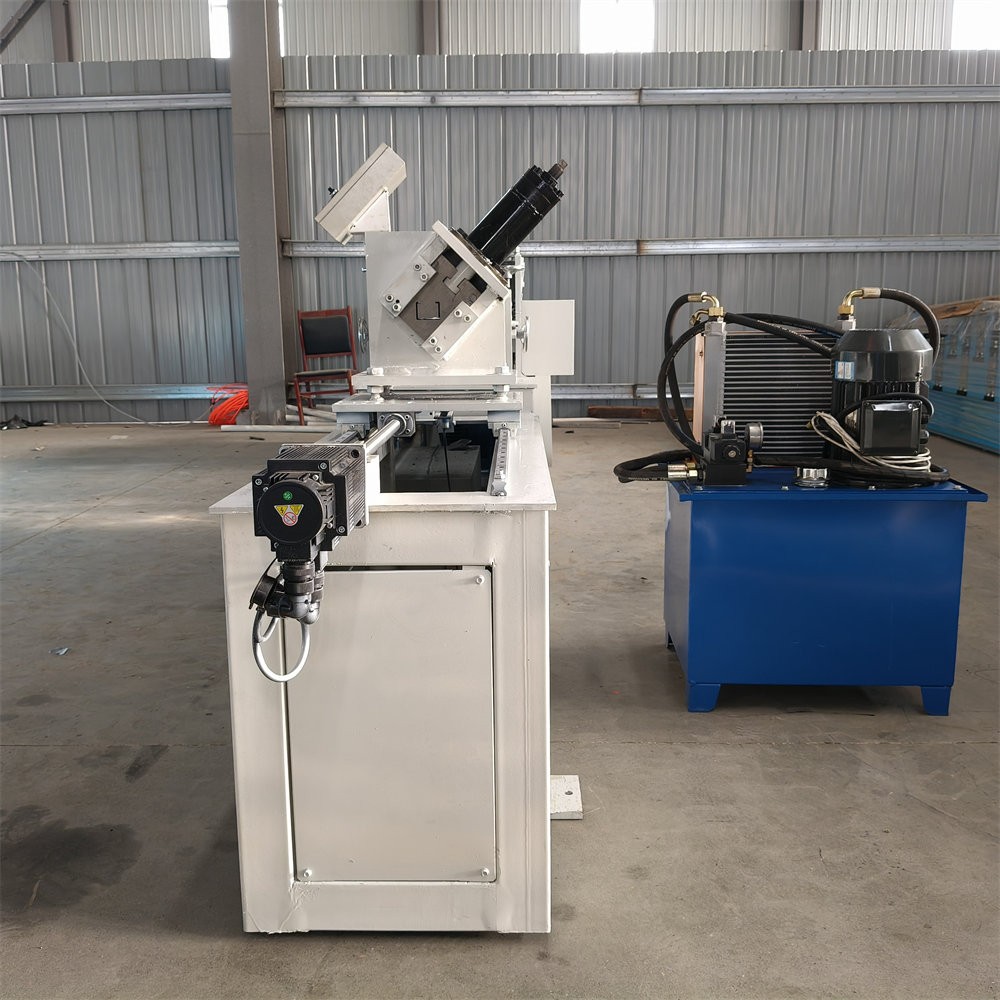

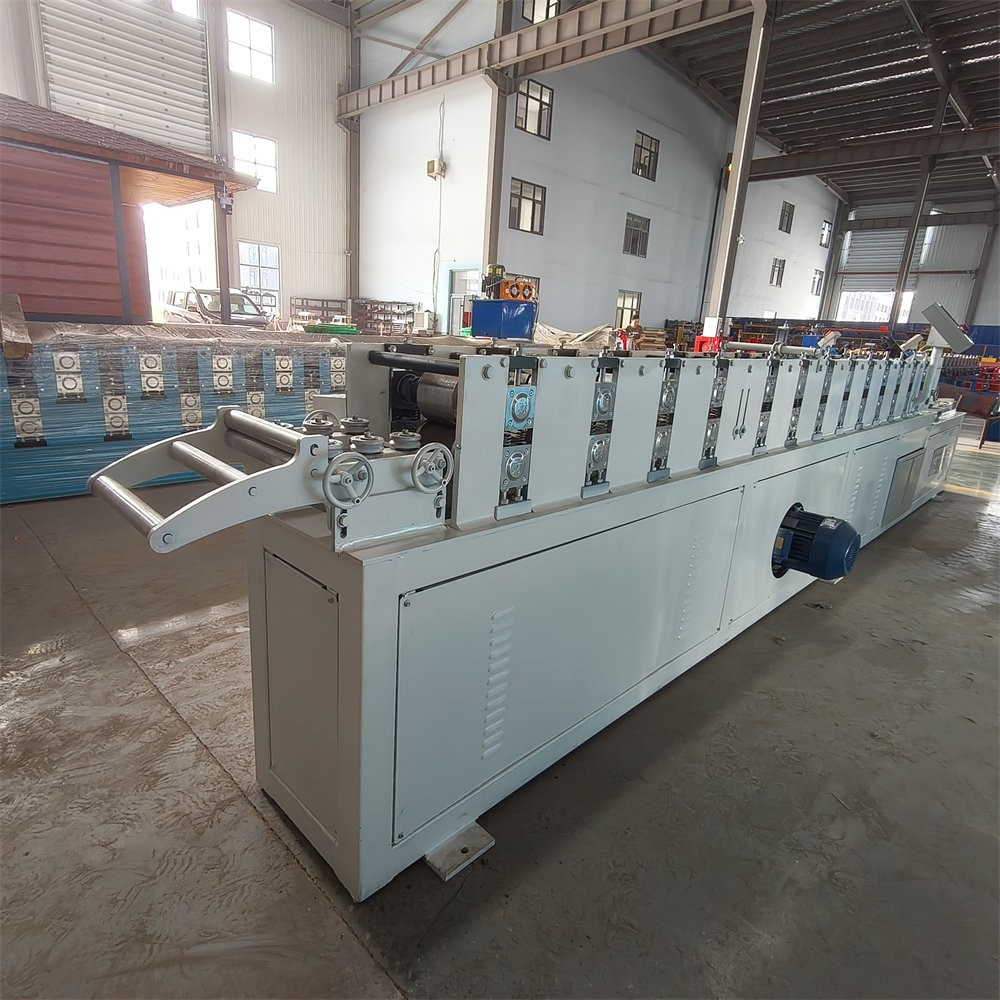

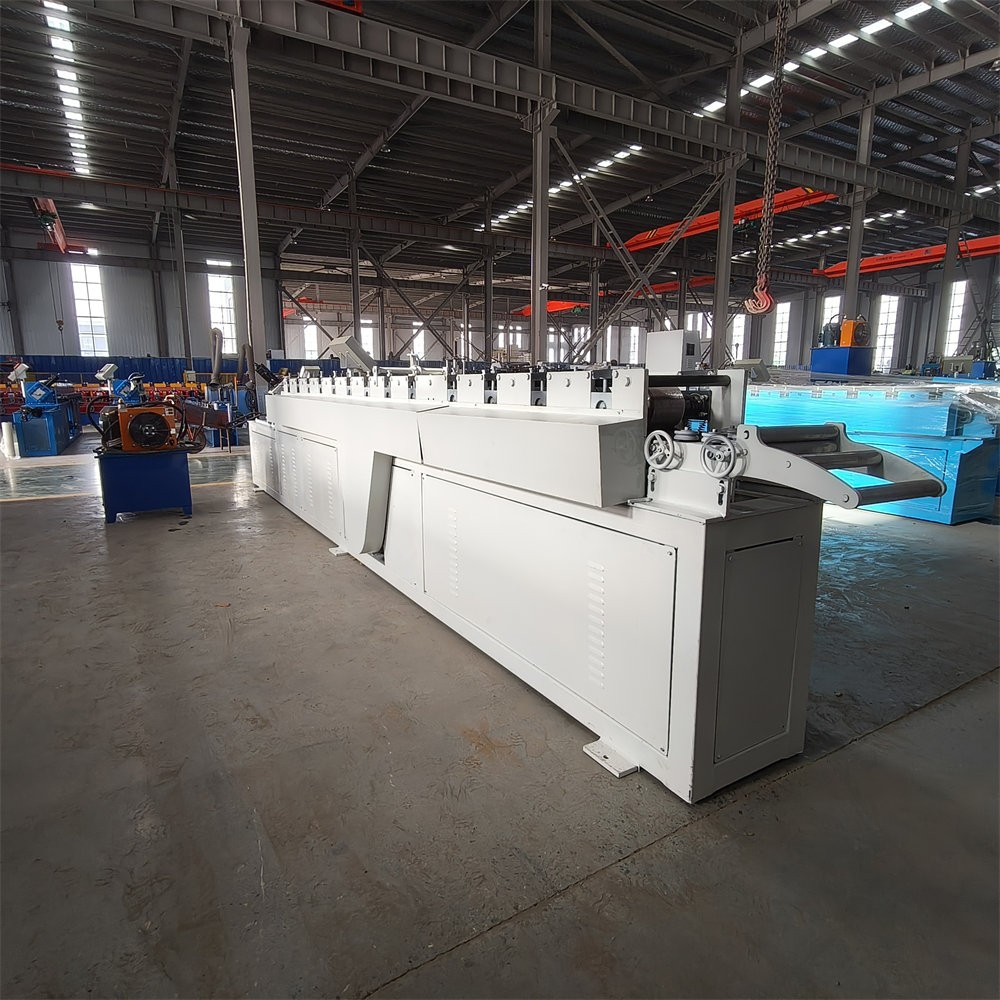

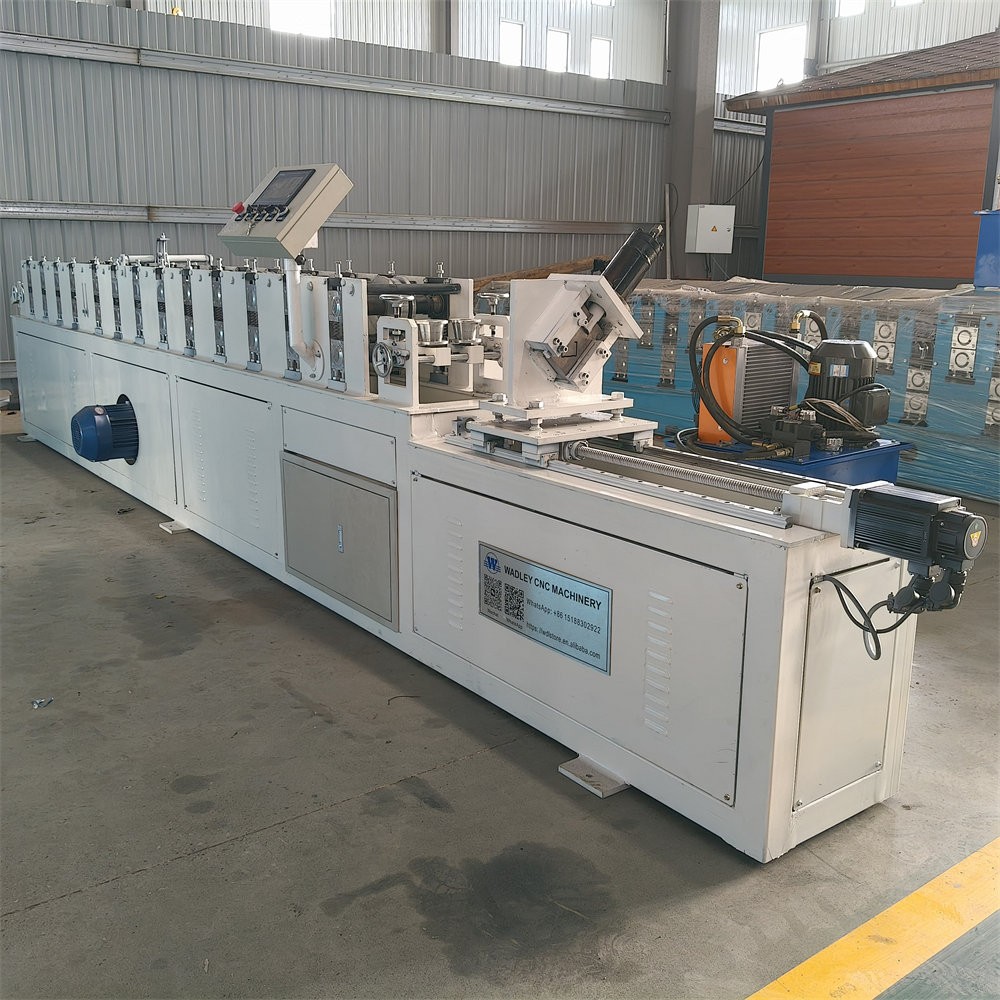

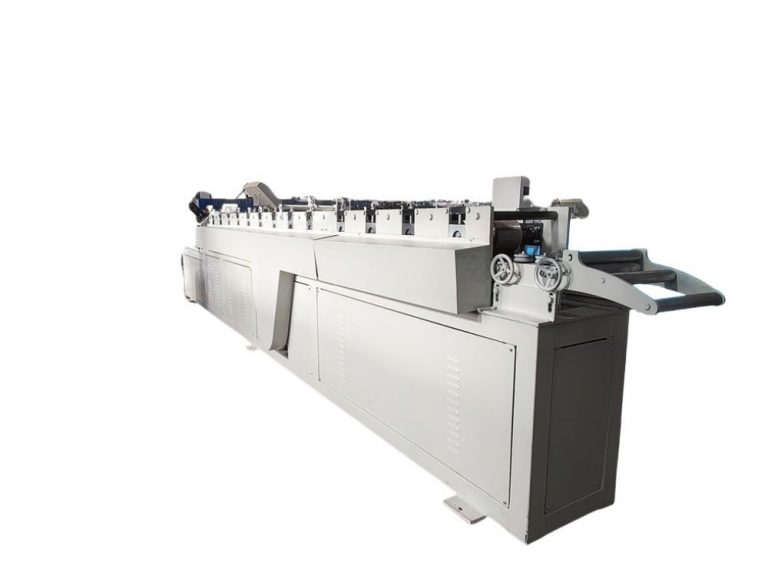

This C purlin roll forming machine consists of hydraulic decoiler, straightening and roll forming M/C,PLC control system, hydraulic pressing&cutting, and production stand.
Characteristic
- It’s made of high strength steel plate for the base material,
and the most advanced design and roll forming. It has excellent structural properties.
- Quality Materials to meet fire code requirements.
- High efficiency, energy saving,high speedand can be used continuously
Parameter
|
material spec |
sheet, galvanized steel sheet, aluminum sheet |
|
size |
75mm-100mm-150mm |
|
thickness of coil sheet |
0.8-1.6 mm |
|
roller material |
use the excellent hammered steel GCr15 to be quenched |
|
shaft material |
45# hard steel, heated and quenched, cylindrical grinding |
|
cutting blade |
Cr12 mould steel with quenched treatment |
|
diameter of shaft |
80 mm |
|
forming steps |
12 rows |
|
productivity |
10-15 m/min |
|
hydraulic station power |
7.5 KW |
|
controlling system |
famous PLC computer control |
|
material of cutting table |
Cr 12 mould steel with quenched treatment |
|
appearance size |
7500mm*1000mm*1500mm |
|
hydraulic oil |
46# hydraulic oil |
|
Electric tension |
220V 60 Hz 1 Phase or 3 phase |
|
Color |
Blue, green or yellow or as your requirement |
|
Service life |
20 years |
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 20 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 30 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. （include chain, bearing, roller,oil pipe, counting wheel） If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
Price: 11000-14000$/set
Min Order: 1set
Place of Origin: Hebei, China
Certification: CE
