Product introduction:
Our company engaged in manufacturing the roll forming set of roofing panel and wall panel used for steel construction for many years. This product is widely used in many kinds of industrial factory, civilian buildings, and wall board for attached part product. It has advantage of pretty appearance, durable using and so on.
It is produced continuously as roll forming machine instead using bending machine to make angel tile saving human resources, lower labor cost.

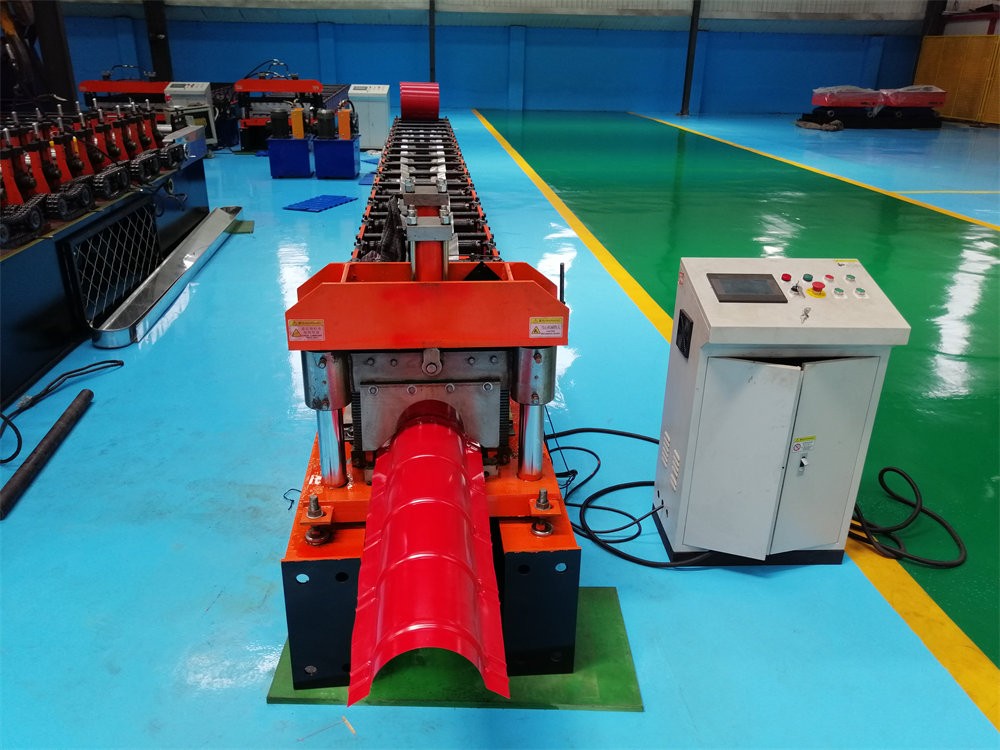

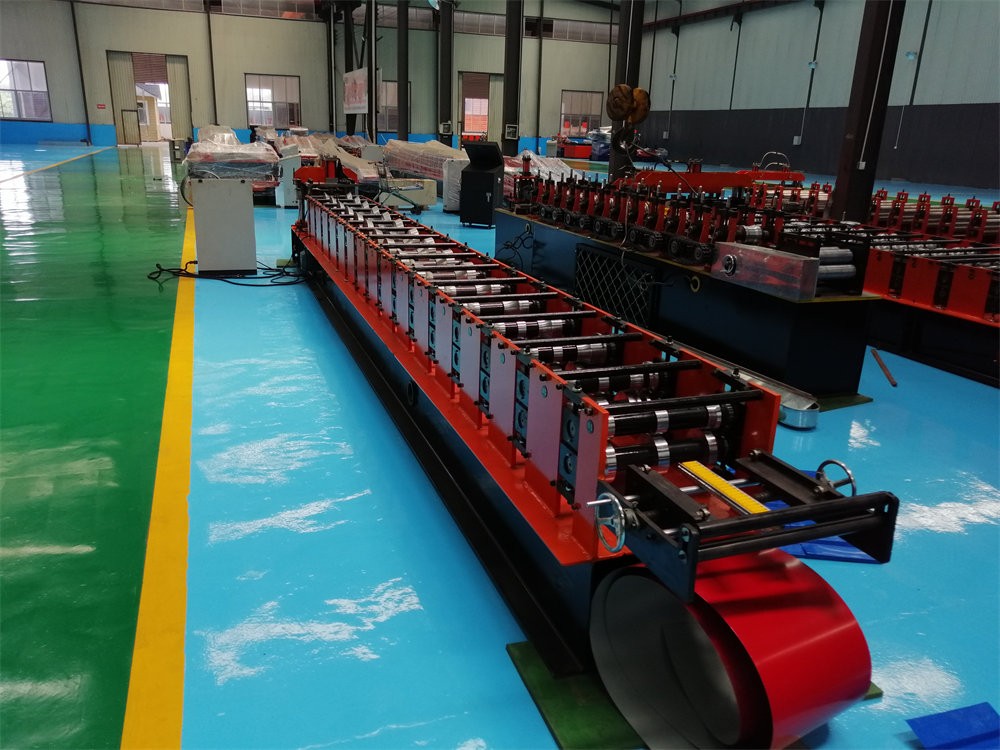

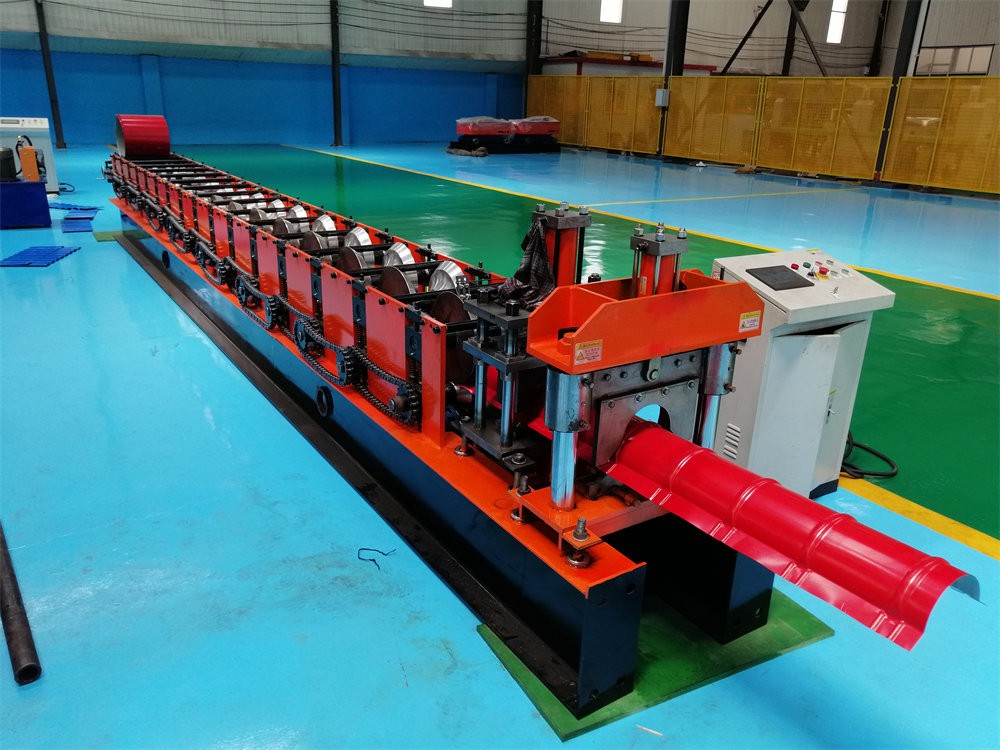

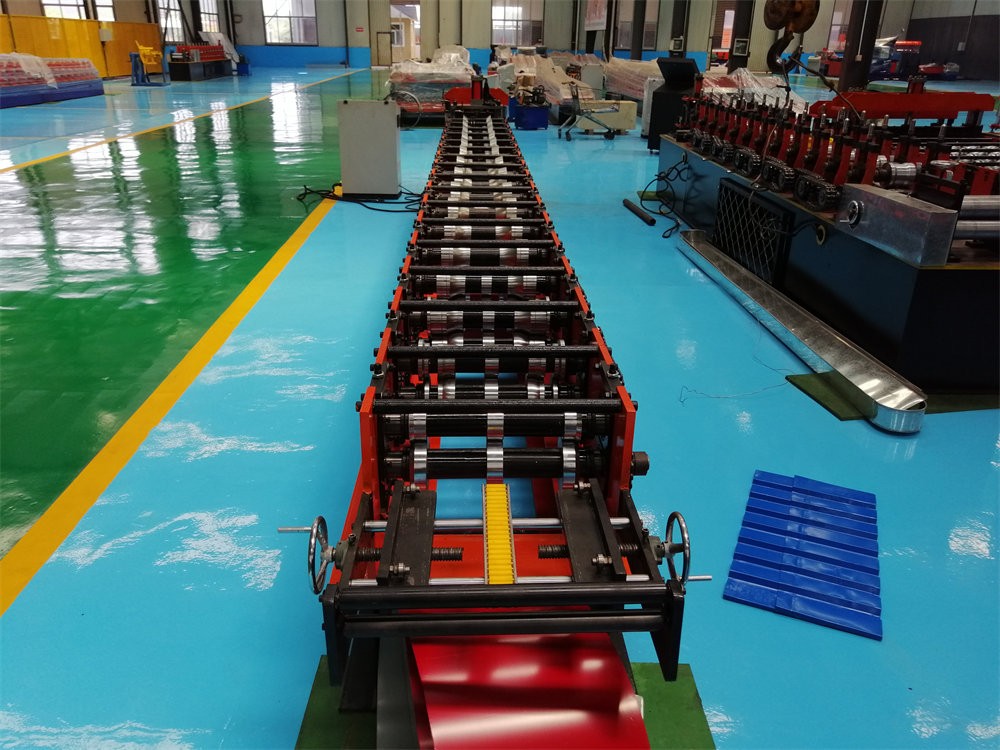

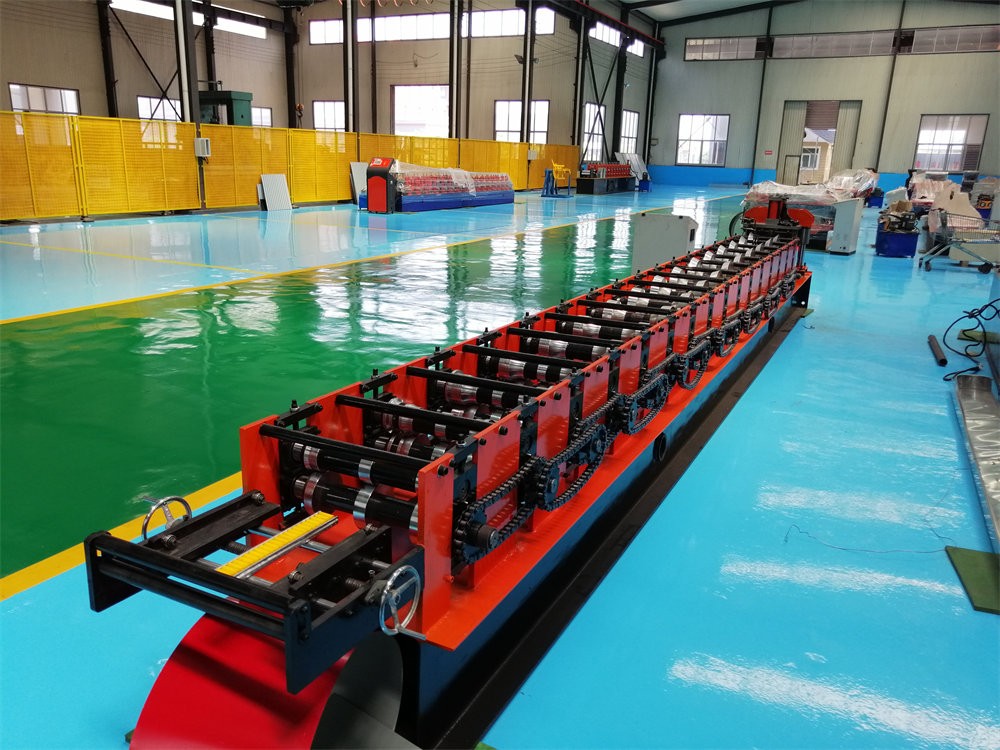

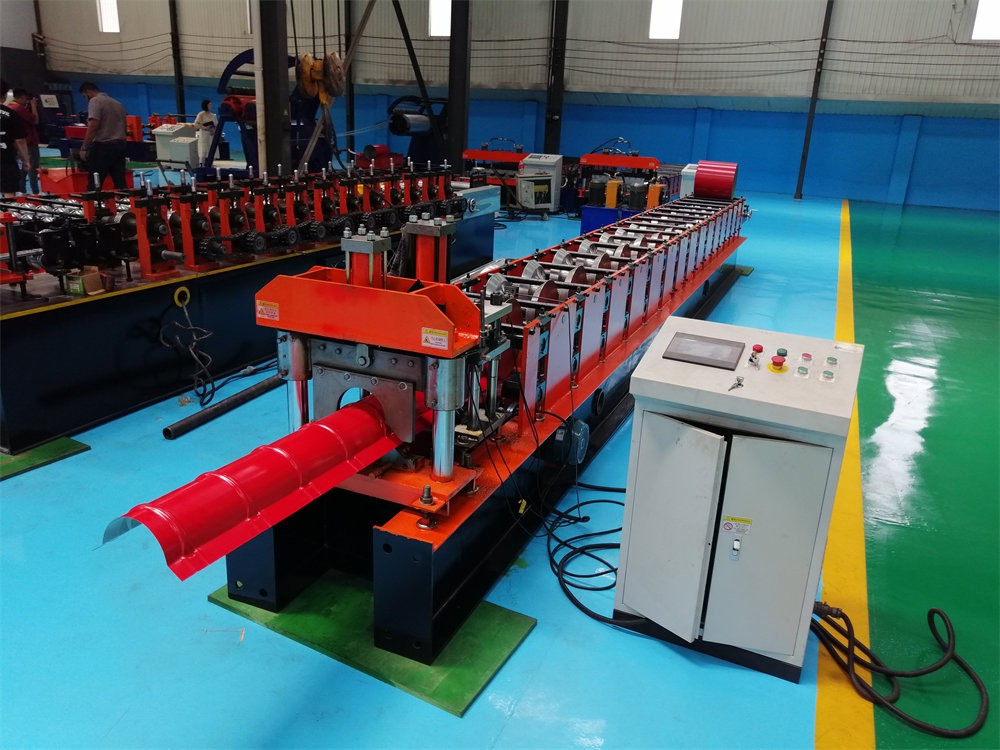

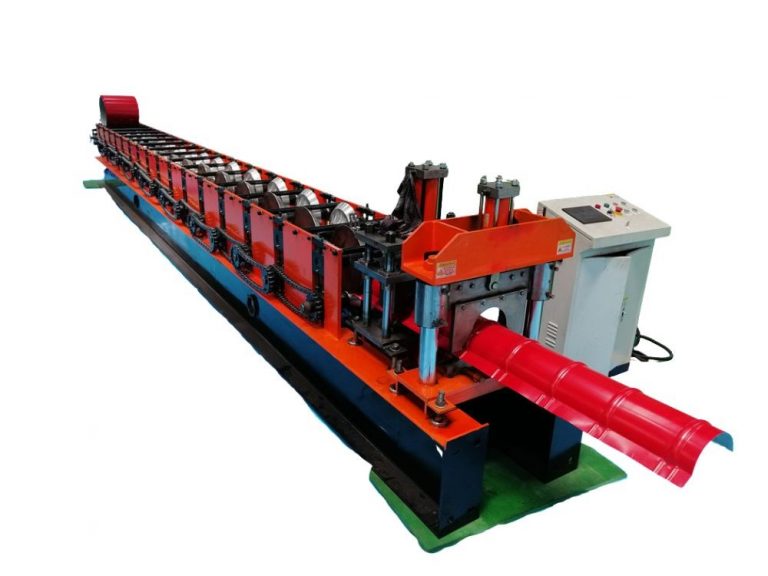

Components of Ridge cap machine
This machine is composed of automatic discharge table, feed leading table, and main forming machine, cutting device, hydraulic station and computer control system.
Optional system is normal uncoiler and hydraulic uncoiler.
Characteristic
1 High efficiency, High Energy.
2 The surface of the roof cap will be very smooth and beautiful
3 Easy fix and operation; the key is in the length and quantity on the control panel.
4 It has advantage of pretty appearance
parameters:
|
Suitable Material |
Material |
Steel, galvanized steel |
|
Width |
402 mm |
|
|
Thickness |
0.2-0.65 mm |
|
|
Material of rollers |
Cr12 (heated and quenched,CNC lathe finish turning,hard chrome coated 0.05mm) |
|
|
Rows of rollers |
18 stations |
|
|
Material of shafts |
45# hard steel (heated and quenched,cylindrical grinding) |
|
|
Diameter of shafts |
70 mm |
|
|
Material of blade |
Cr12Mov |
|
|
Speed |
10-15 m/min |
|
|
Side plate thickness |
16 mm |
|
|
Total power |
4 kw |
|
|
Voltage |
220V 60HZ 3Phase |
|
|
Appearance size (About) |
8000mm*1000mm*1500mm |
|
|
Weight(About) |
4 tons |
|
|
Electronic control system |
PLC + Touch Screen SIEMENS brand |
|
|
Color |
Blue, green or yellow or as your requirement |
|
|
Service life |
20 years |
|
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 20 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 30 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. （include chain, bearing, roller,oil pipe, counting wheel） If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
Price: 8000-9000$/set
Min Order: 1set
Place of Origin: Hebei, China
Certification: CE
