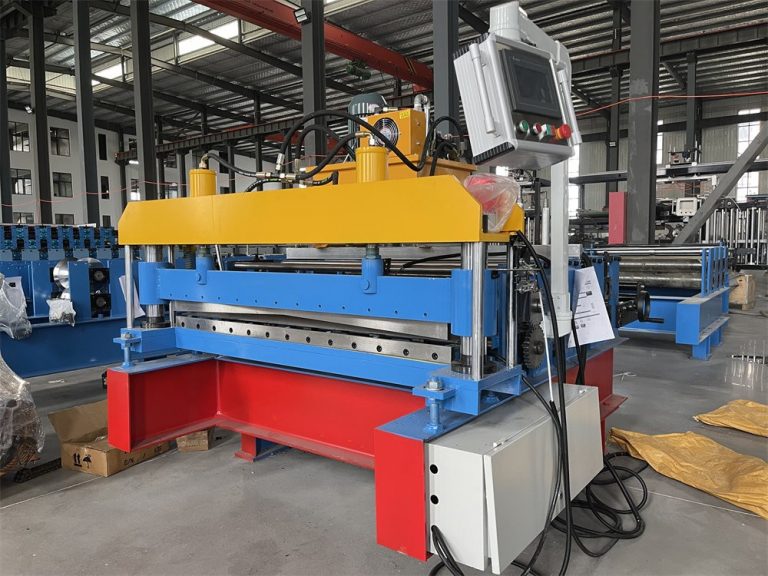

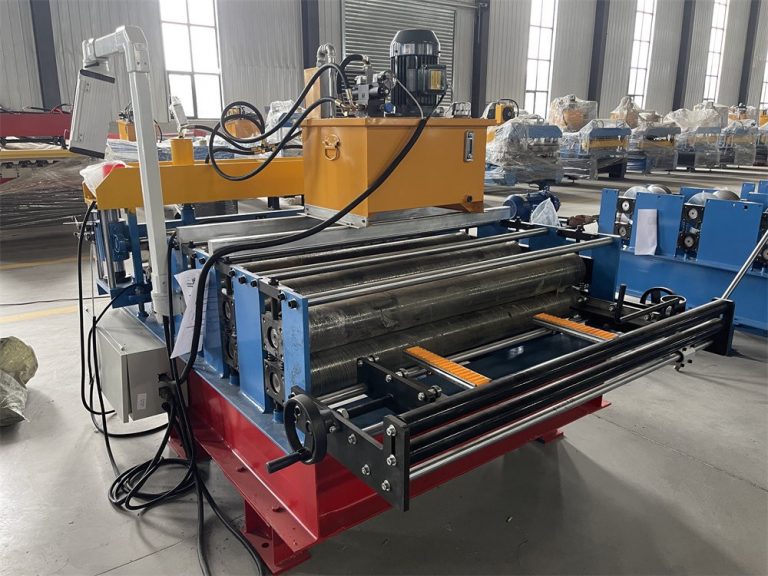

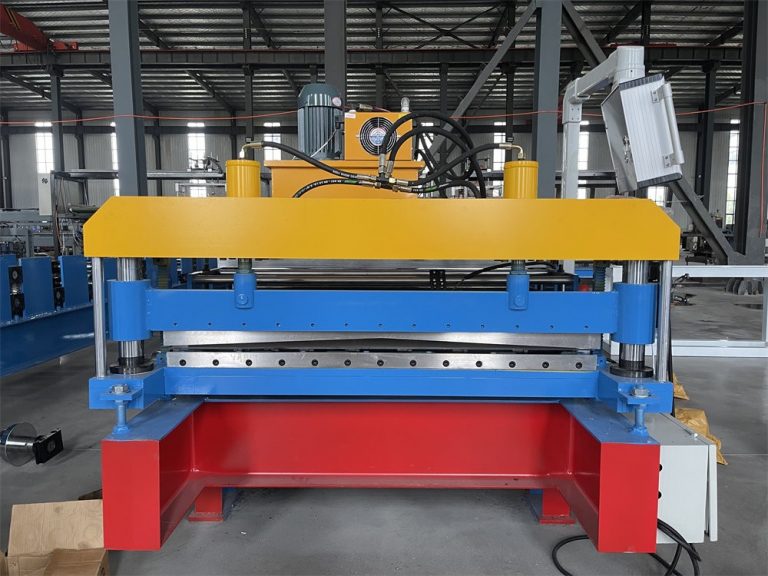

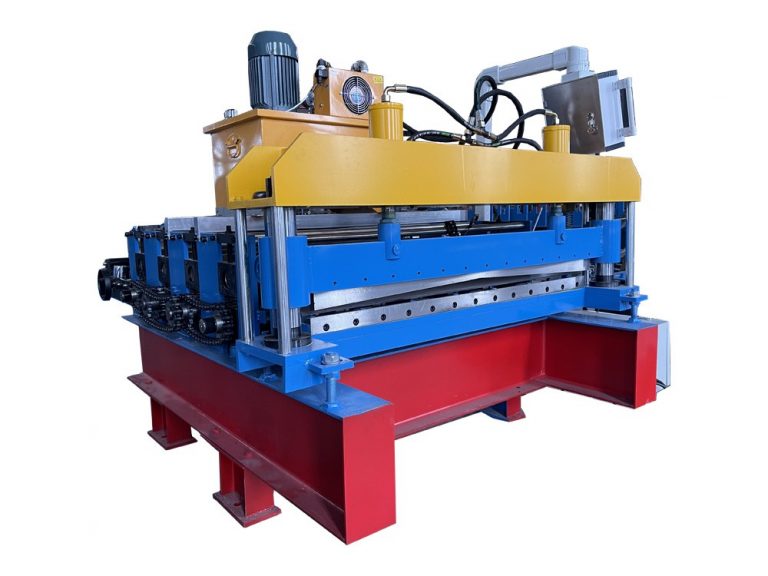

Product introduction:
Leveler is commonly used in sheet metal processing equipment, stereotypes leveler mainly depends on the thickness, material and requires correction strip. The thicker the material required for structural rigidity to the better, the fewer the number of rolls, roll through the larger, the greater the power (certain width), and vice versa.
Components:
The components of this roof panel machine are: manual/automatic decoiler, roll forming machine, plc control system, hydraulic part, cutting part and discharge table.
Characteristic:
- High speed
- Low noise
- Good performance and low production cost
- Easy to operate
Parameter:
|
material spec |
colored steel sheet, galvanized steel sheet, aluminum sheet |
|
thickness of coil sheet |
0.2-1.0 mm |
|
material expand width |
1000 mm |
|
roller material |
High grade NO. 45 forged steel with 0.05mm hard chrome plating |
|
shaft material |
High grade NO. 45 carbon wrought steel |
|
cutting blade |
Cr12 mould steel with quenched treatment |
|
main frame |
300 H steel |
|
hydraulic station power |
4 KW |
|
Speed |
10-15m/min |
|
hydraulic pressure |
10-12MPa |
|
controlling system |
famous PLC computer control |
|
material of cutting table |
Cr 12 mould steel with quenched treatment |
|
appearance size |
2500mm*1450mm*1500mm |
|
hydraulic oil |
40# hydraulic oil |
|
Electric tension |
380V 50 Hz 3 Phase or as your requirements |
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 20 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 30 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. （include chain, bearing, roller,oil pipe, counting wheel） If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
Price: 6000-15000$/set
Min Order: 1set
Place of Origin: Hebei, China
Certification: CE
