Parameter
|

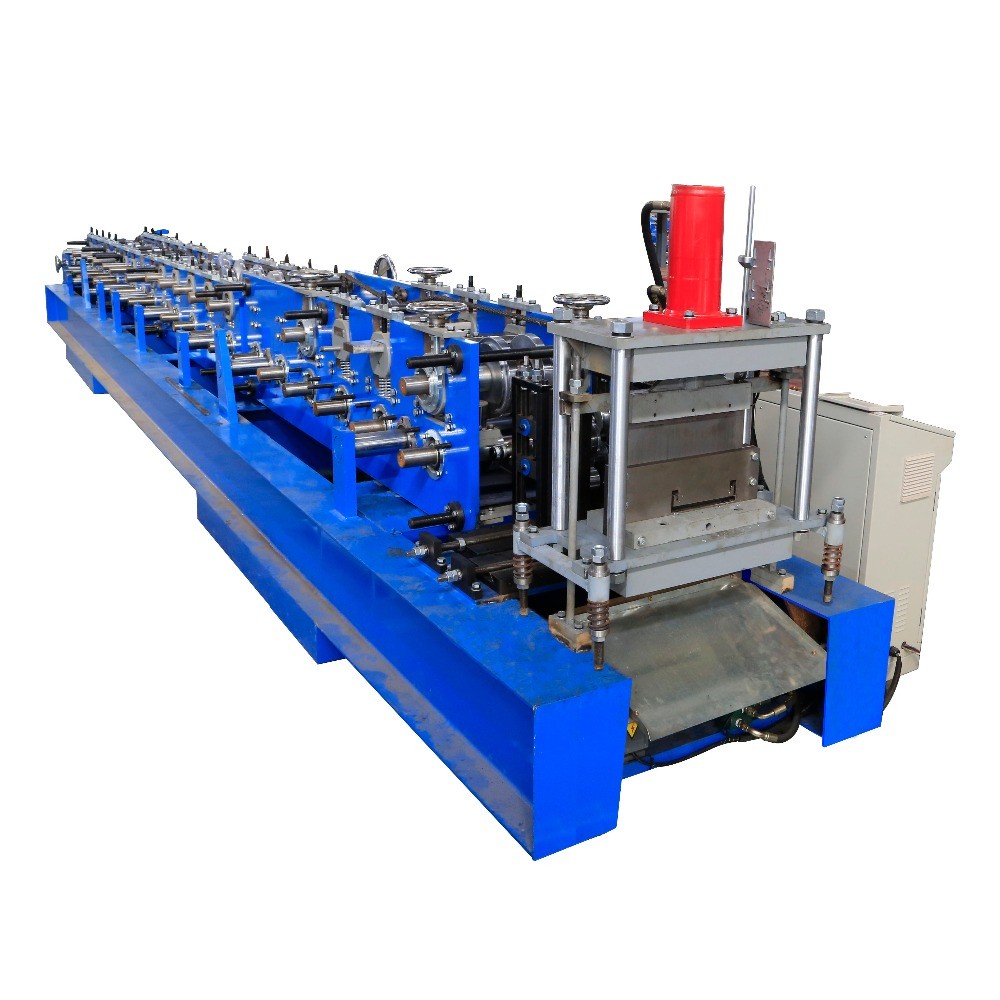

Main body of the machine
|
Feeding material: Steel plate Thickness of the plate: 0.7-2 mm Height range: 50 to 100 mm Width range: 50 to 350 mm Length: Max 3000 mm Dimensions: 10000*2000*1200 mm Diameter of the rollers: Φ90 mm Rollers station: 18 rows Productivity: 8-10 m/min Total power: 15+15 kw Voltage: 380V 50Hz 3phase or as buyer’s demand Weight: 11 tons Frame: 400 H steel Side board thickness: 20mm Cutting way: Hydraulic cutting before roll forming Adjust models by adjust spacers manually |
|
Hydraulic punching device
|
This punching device is fixed on the frame of roll forming machine, and driven by hydraulic pump station, and will do the punching holes as the drawing before roll forming. And the width of punching holes can be adjustable to match all the different models mentioned as below. |
|
Computer control cabinet
|
It adopts industrial computer to control. The target piece’s length is adjustable and digit of it can be adjusted. Computed mode has two Modes: automatic one and manual one. The system is easy to operate and use. It contains programmer, transformer for the electronic machines and kits of every part. Language screen:Chinese,English or Russian language . |
|
Hydraulic pump station
|
Material of blade Gr12,heat treatment 60-62HRC |
|
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job. The system includes: a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves. Power of the oil pump: 5.5kw Hydraulic oil :46# |
|
|
Manual uncoiler
|
Machine type: manual type Bearing capacity:5tons Weight:150kg Dimension:1500mm*1000mm*1000mm Color:can paint as your demand |
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 20 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 60 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. （include chain, bearing, roller,oil pipe, counting wheel） If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
Price: 50000-70000$/set
Min Order: 1set
Place of Origin: Hebei, China
Certification: CE
