Product information:

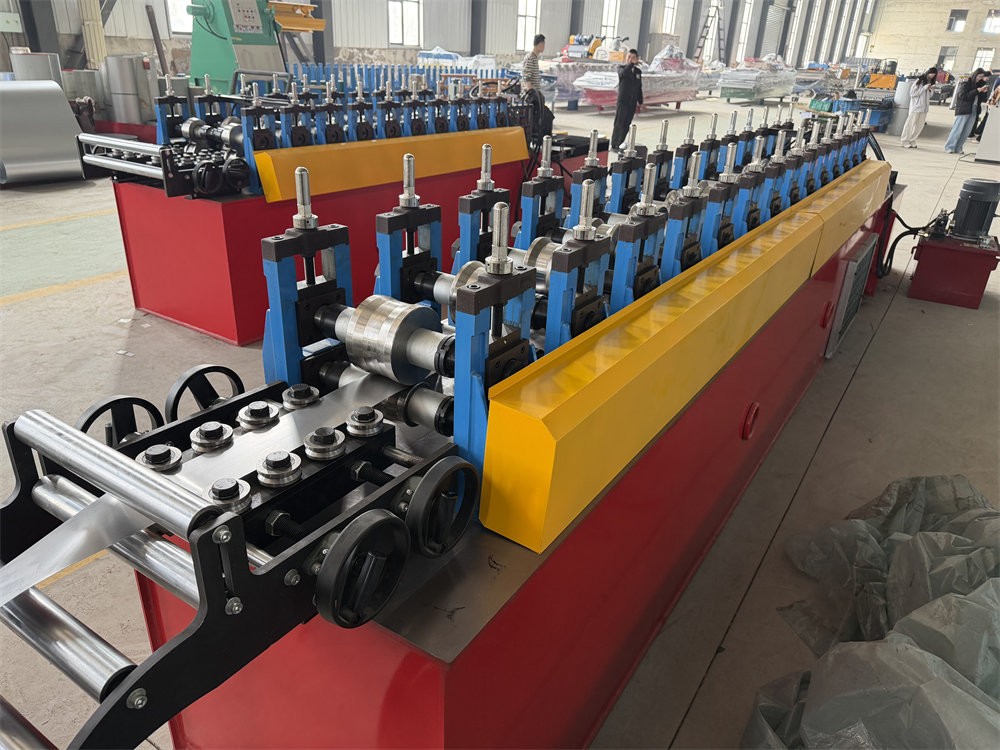

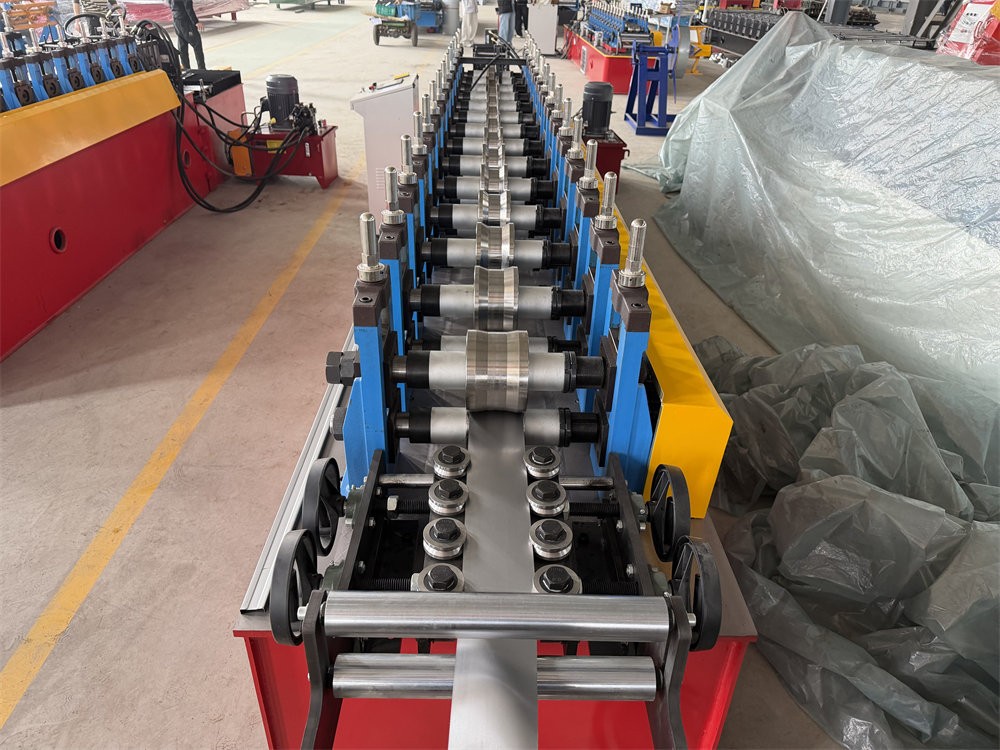

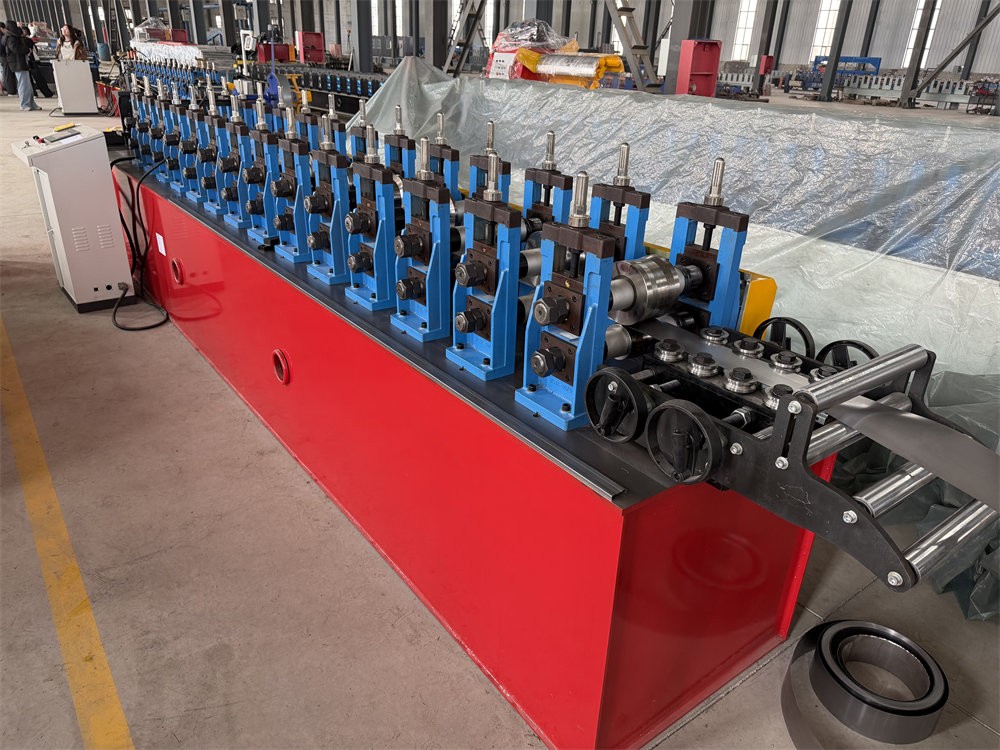

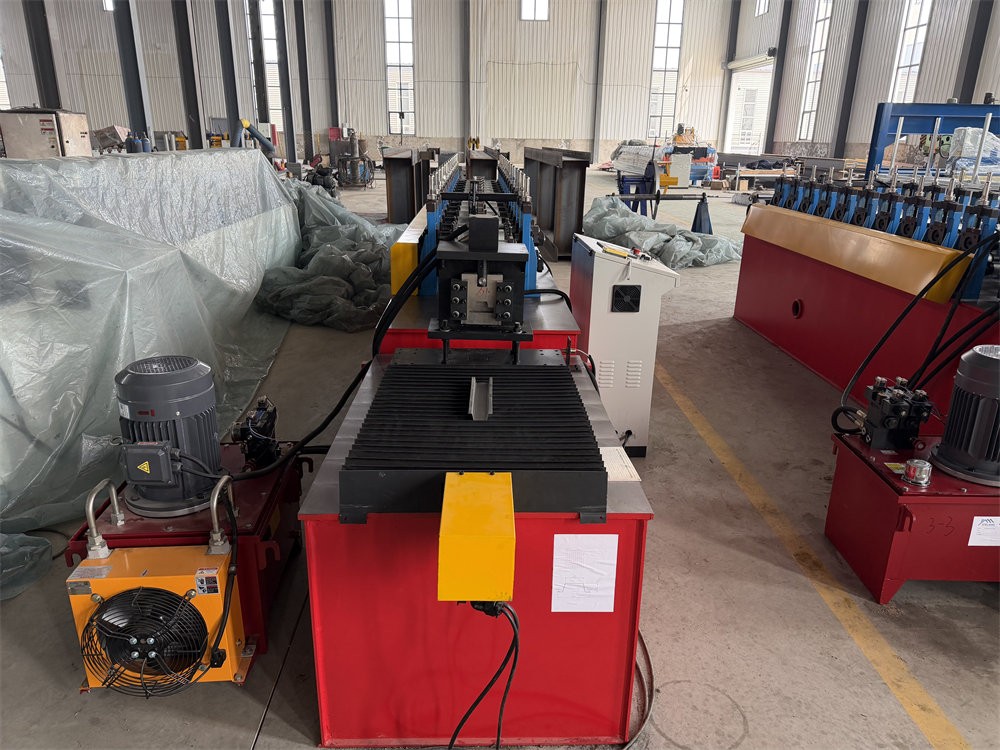

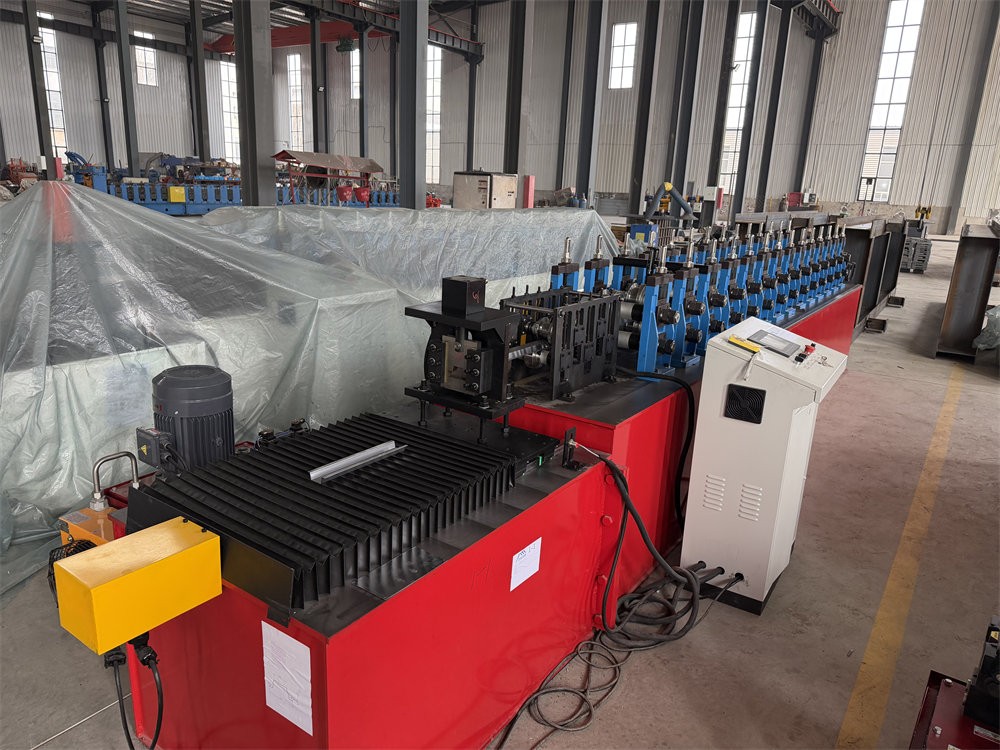

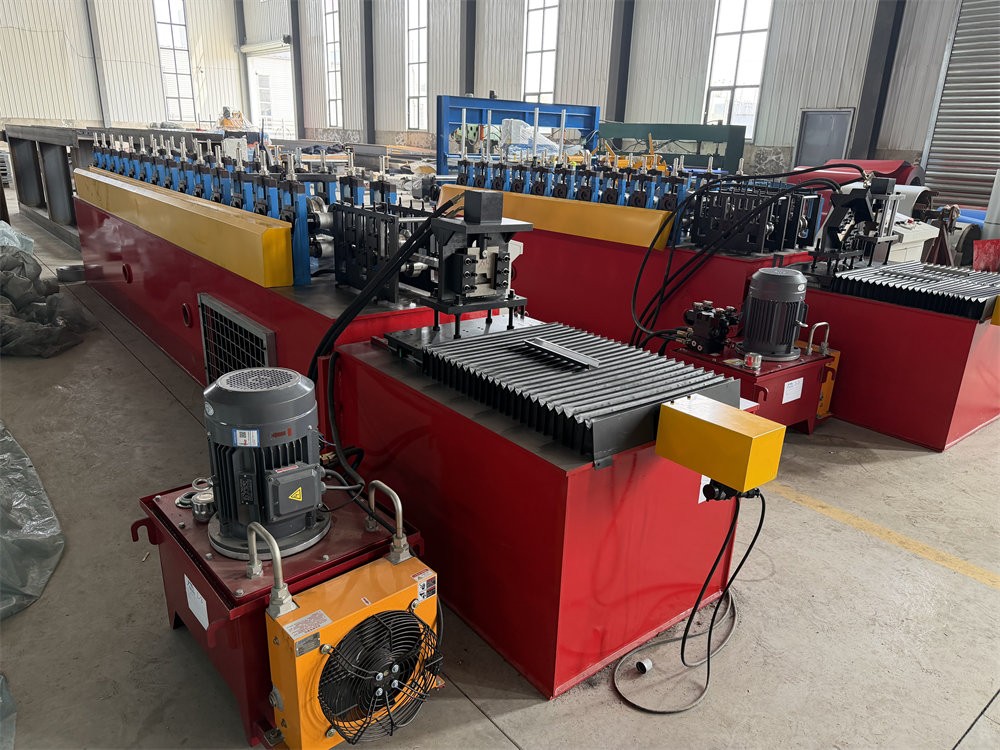

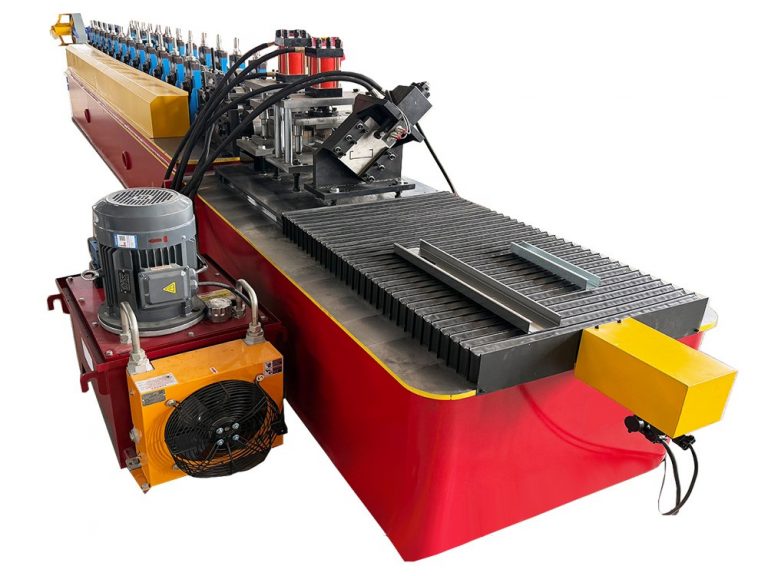

Light Keel machine is a strip of material, by continuous cold rolling molding, production of complex cross-section profiles (products: light steel keel, paint keel, cassette keel, a variety of architectural profiles, steel, steel-lined door profiles, high speed protection bar, etc.) and different sizes of cold-formed, paint unit equipment, PLC control.
Application:
It can widely used on furred ceiling. After crossing the zinc the light keels long time without rust.
Characteristics:
- Plc control system, it is save to operate machine
- High efficiency and low price
- Good performance and low production cost
Parameters:
|
Suitable Material |
Material |
GI, PPGI, PPGL |
|
Thickness |
0.5-1.2 mm |
|
|
Material of rollers |
High grade 45# forged steel, surface hard chromium plating |
|
|
Rows of rollers |
12 stations |
|
|
Material of shafts |
High grade 45# forged steel |
|
|
Diameter of shafts |
50 mm |
|
|
Material of cutting blade |
Cr12 Heat Treatment |
|
|
Cutting Mode |
Hydraulic Guide Column |
|
|
Speed |
10-15 m/min |
|
|
Side plate thickness |
16 mm |
|
|
Chain size |
1 inch |
|
|
Motor |
4 kw |
|
|
Voltage |
380V 50HZ 3Phase or as your require |
|
|
Appearance size (About) |
5000mm*800mm*1300mm |
|
|
Weight(About) |
2 tons |
|
|
Length measurement |
Encoder |
|
|
Control mode |
PLC |
|
|
Operating mode |
Touch screen |
|
|
Screen Language |
Chinese and English or as your require |
|
|
Hydraulic oil |
46# hydraulic oil |
|
|
Color of machine |
Blue and red or as your require |
|
|
Color |
Blue, green or yellow or as your requirement |
|
|
Service life |
20 years |
|
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 20 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 30 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. （include chain, bearing, roller,oil pipe, counting wheel） If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
Price: 7000-8500$/set
Min Order: 1set
Place of Origin: Hebei, China
Certification: CE
