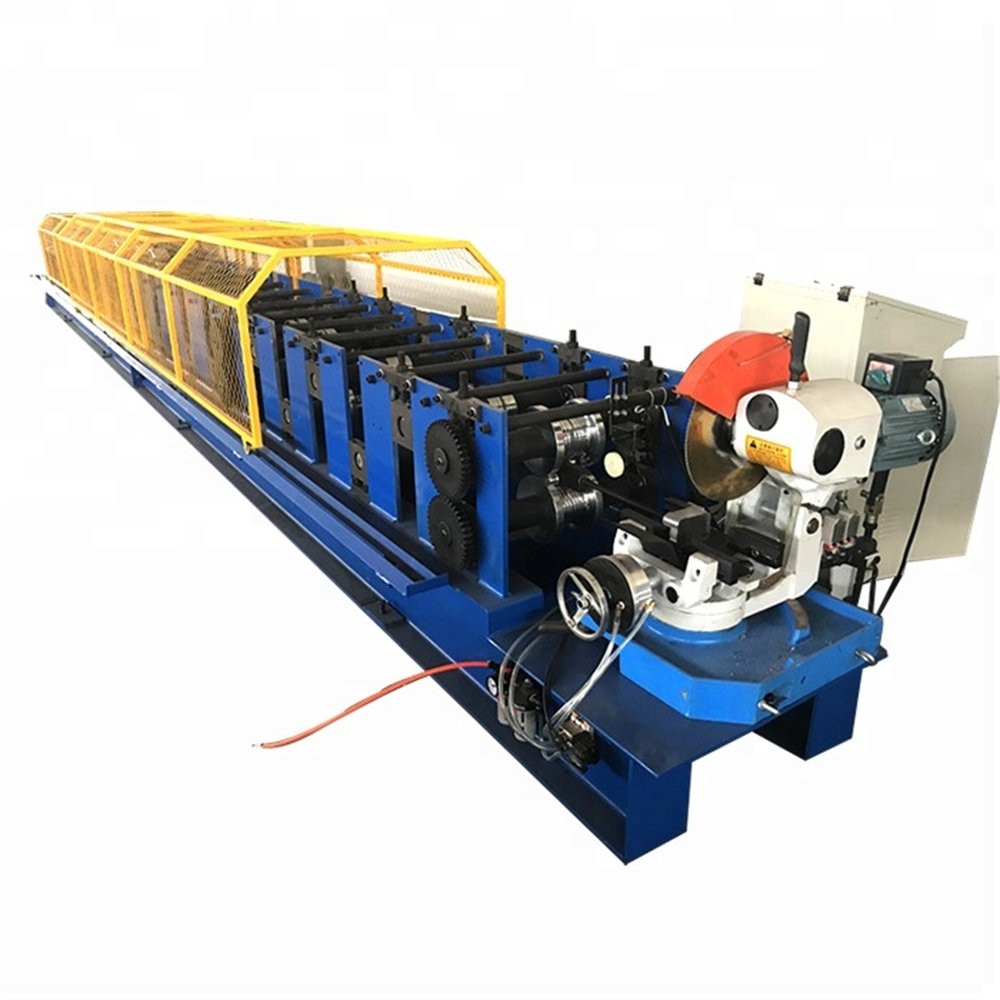

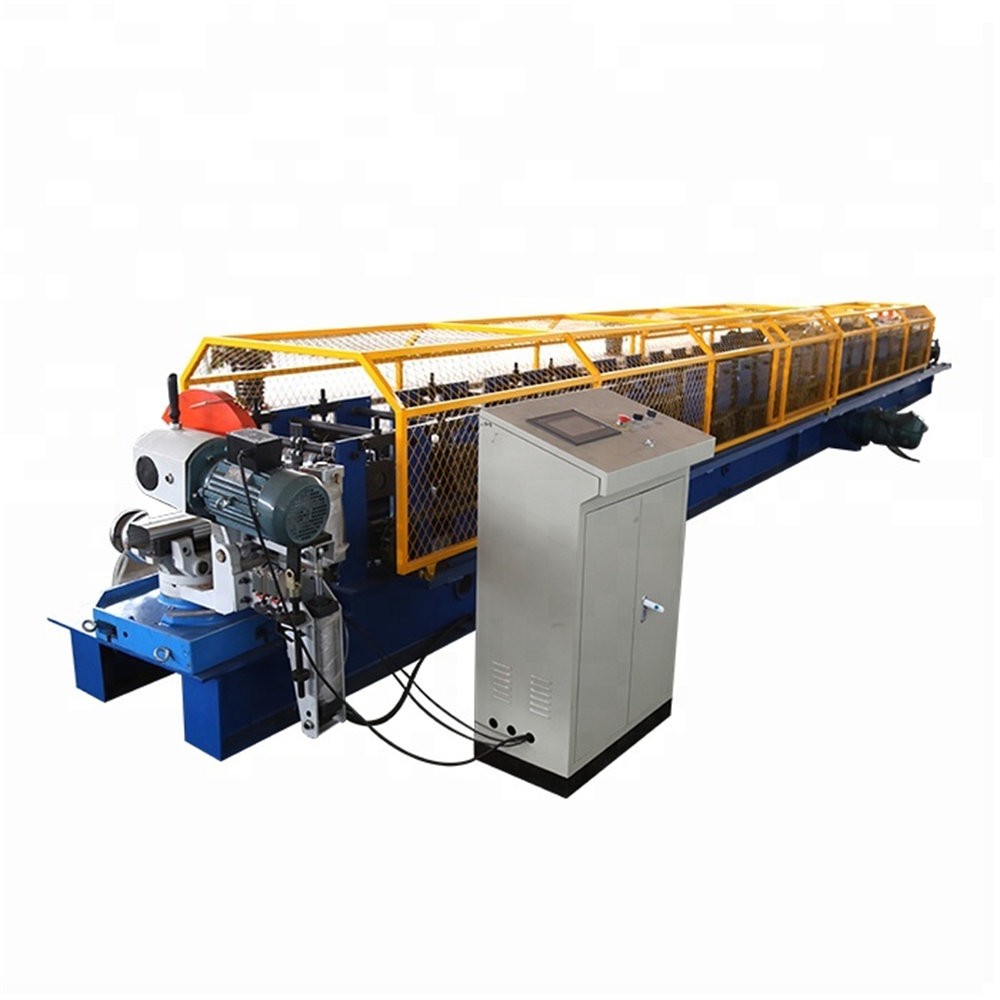

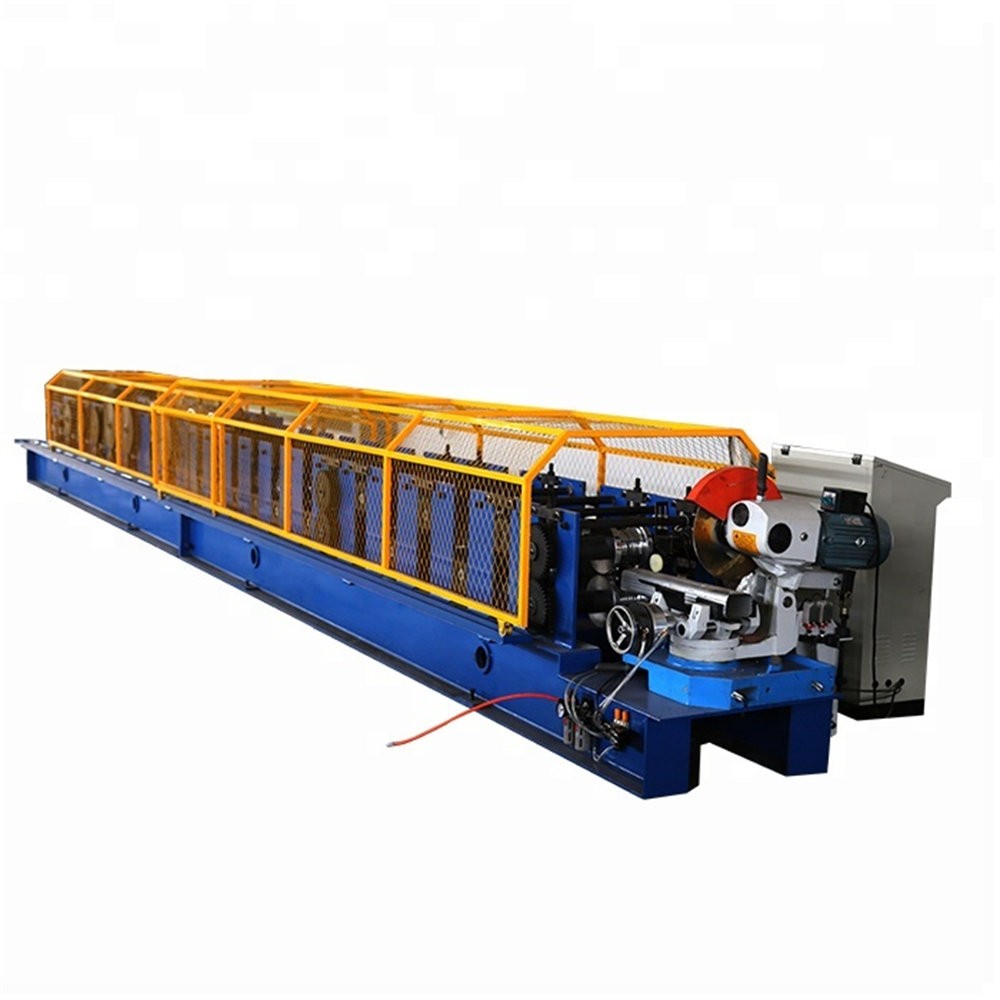

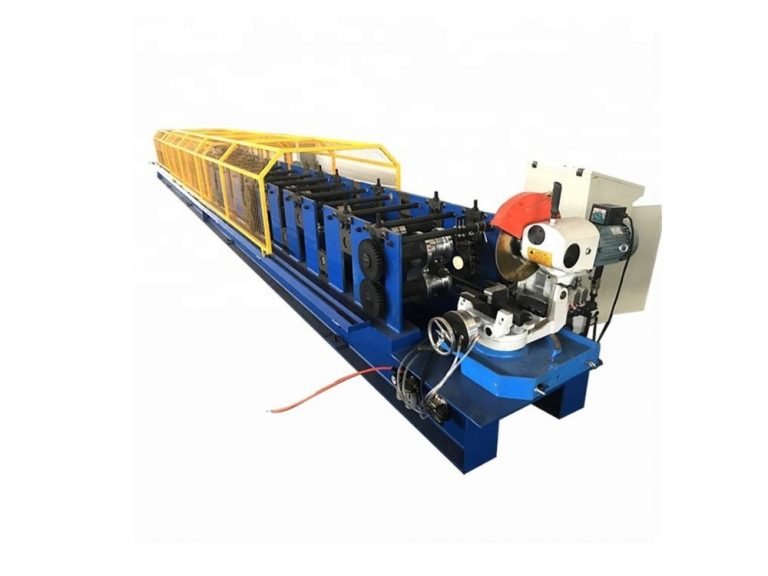

Product introduction:

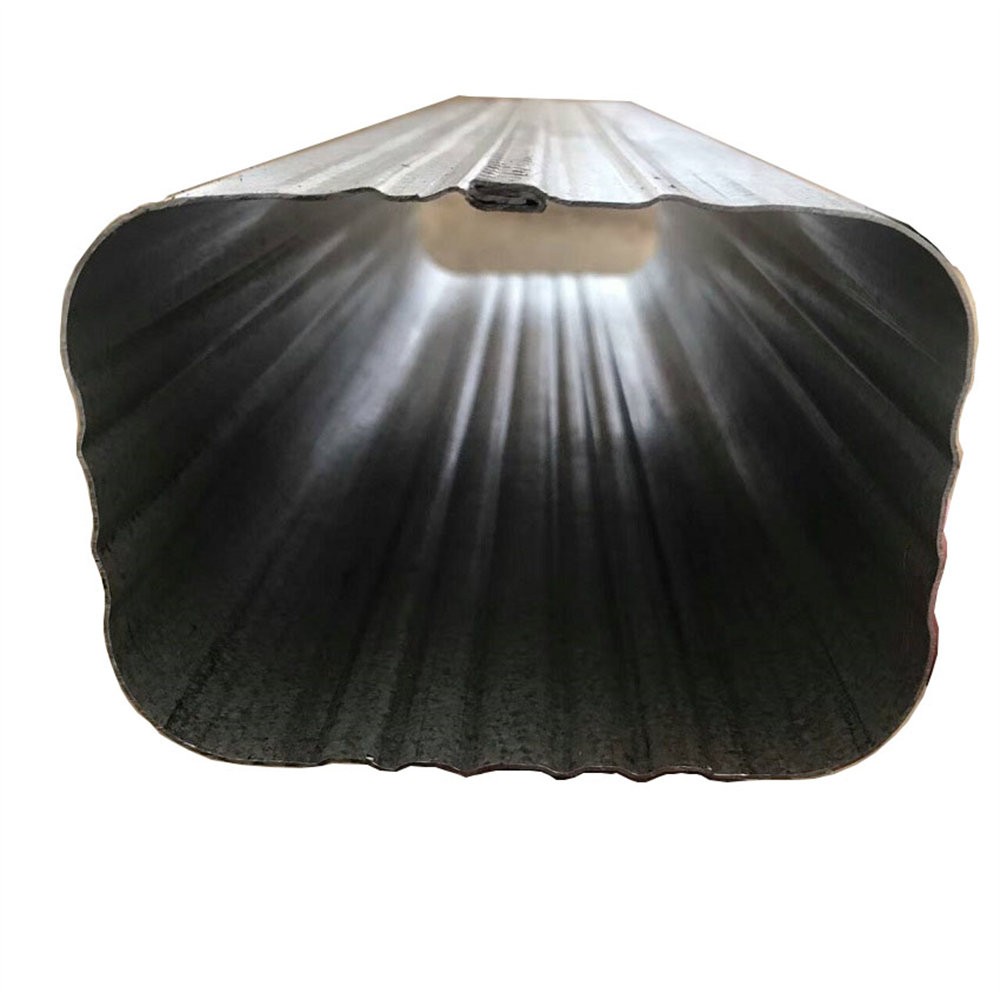

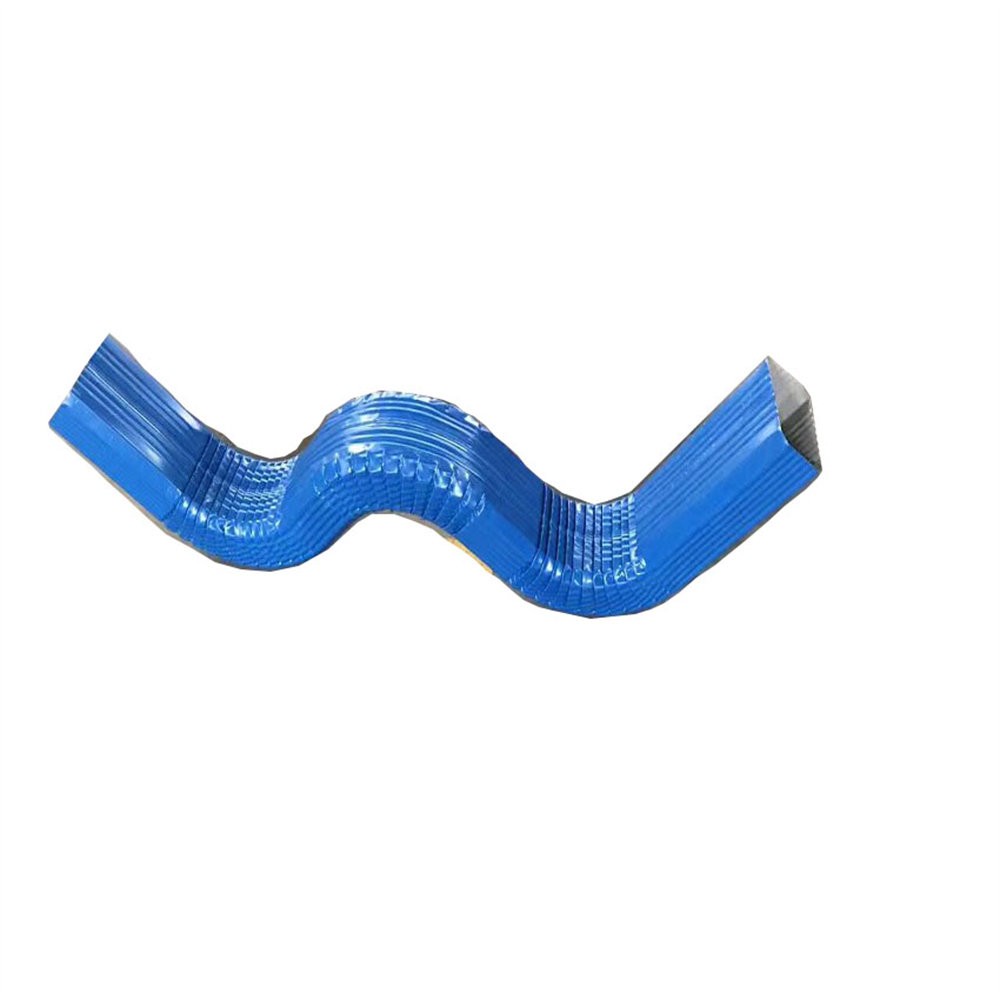

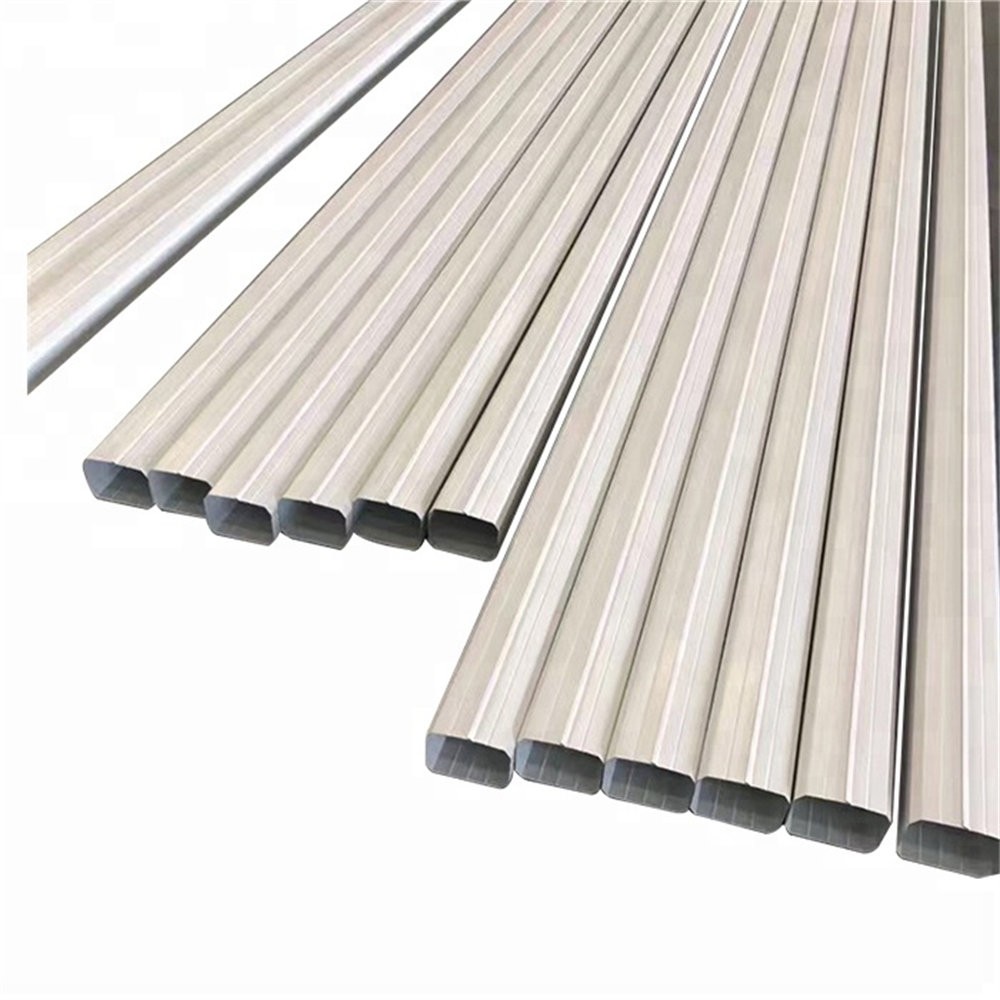

Downspout roll forming machine also named downpipe roll forming machine. It has two kinds, round pipe and square pipe, both are widely used in house building. It collects the rainwater of the roof surface very well, then drains the rainwater into ground. Because of this function,it is very popular in construction.
Components:
The components of this machine are: manual/automatic decoiler, roll forming machine, plc control system, hydraulic part, cutting part and discharge table.
Characteristic:
- High speed
- Low noise
- Good performance and low production cost
- Easy to operate
Parameter
|
Suitable Material |
Material |
GI, PPGI, PPGL |
|
Thickness |
0.5-0.8mm |
|
|
Material of rollers |
High grade 45# forged steel, surface hard chromium plating |
|
|
Rows of rollers |
20 stations |
|
|
Material of shafts |
High grade 45# forged steel |
|
|
Diameter of shafts |
90 mm |
|
|
Material of cutting blade |
Cr12 Heat Treatment |
|
|
Speed |
20-25m/min |
|
|
Side plate thickness |
16 mm |
|
|
H steel |
300 mm |
|
|
Chain size |
1 inch |
|
|
Total power |
7.5 kw |
|
|
Voltage |
380V 50HZ 3Phase |
|
|
Appearance size (About) |
7800mm*1000mm*1500mm |
|
|
Weight(About) |
5.5 tons |
|
|
Length measurement |
Encoder |
|
|
Control mode |
PLC |
|
|
Operating mode |
Button + Touch screen |
|
|
Color |
Blue, green or yellow or as your requirement |
|
|
Service life |
20 years |
|
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 20 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 30 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. （include chain, bearing, roller,oil pipe, counting wheel） If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
Price: 21000-25000$/set
Min Order: 1set
Place of Origin: Hebei, China
Certification: CE
