Product introduction:

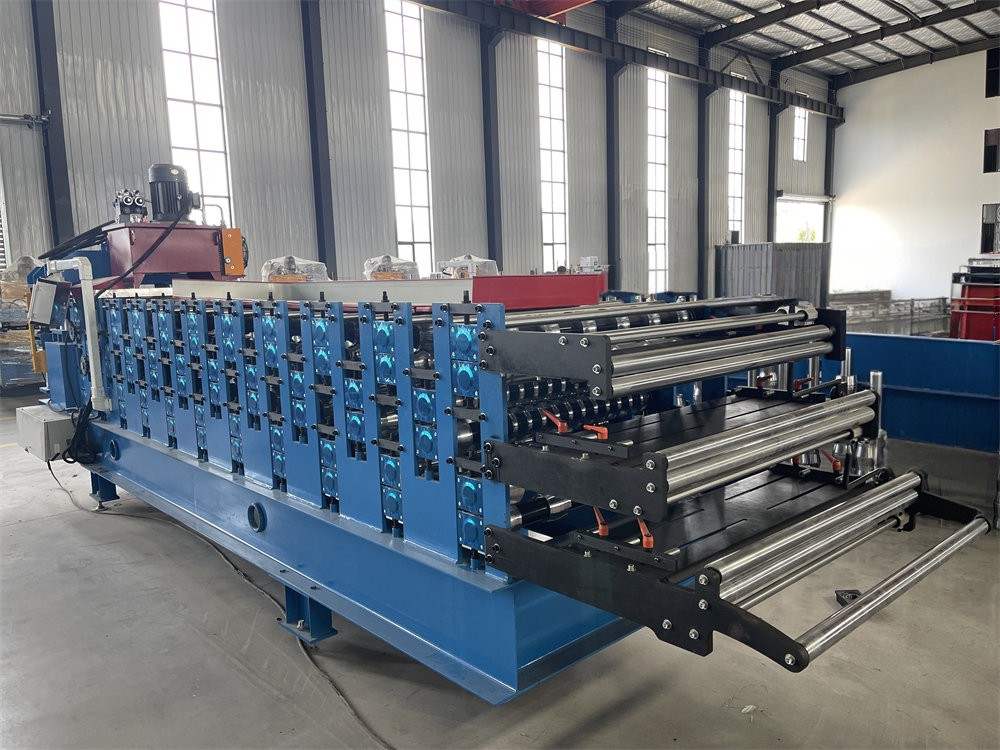

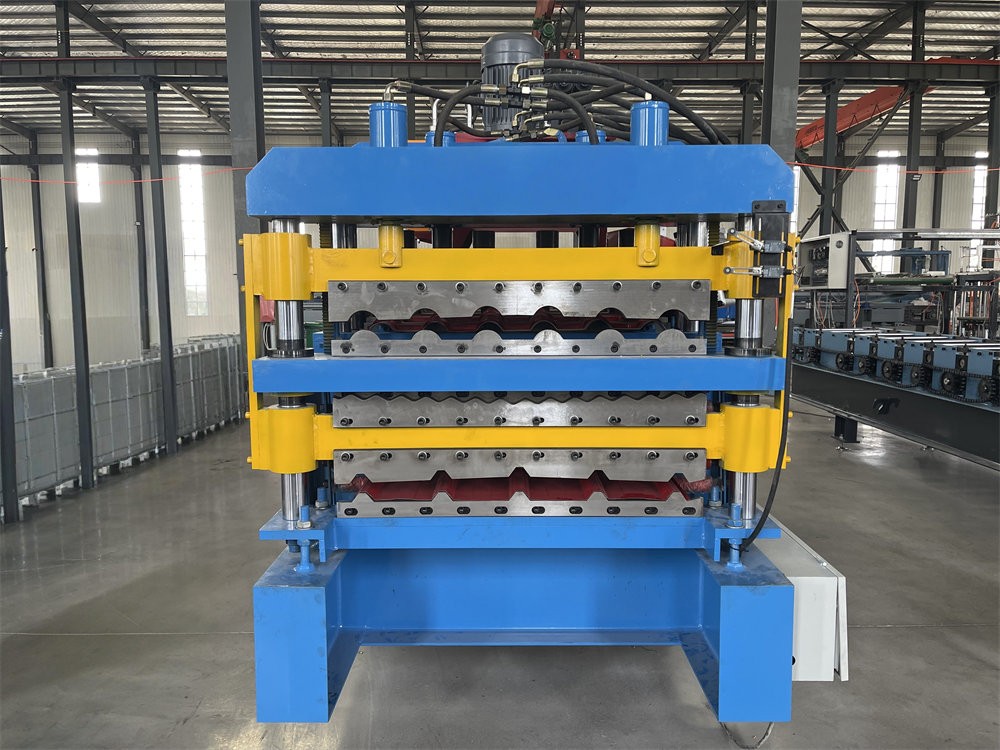

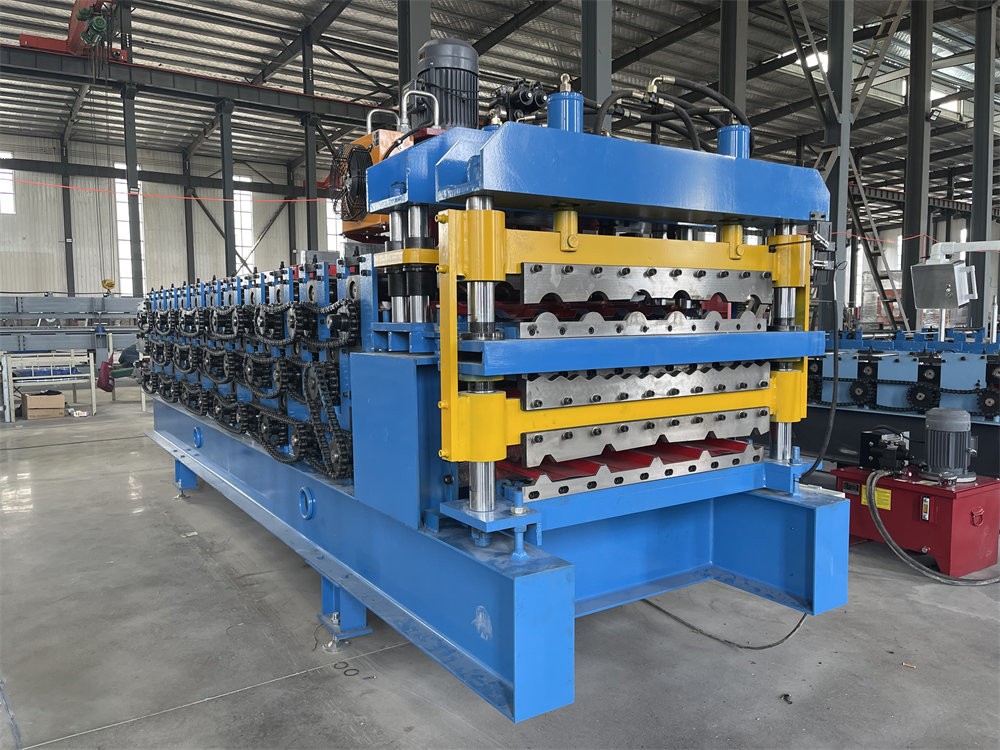

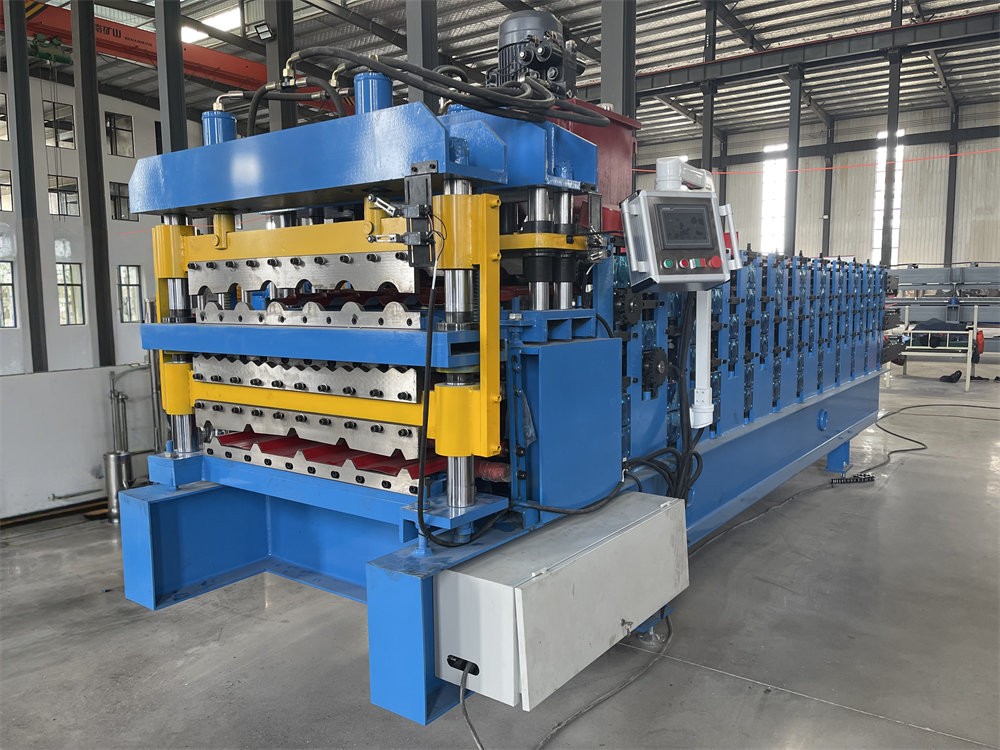

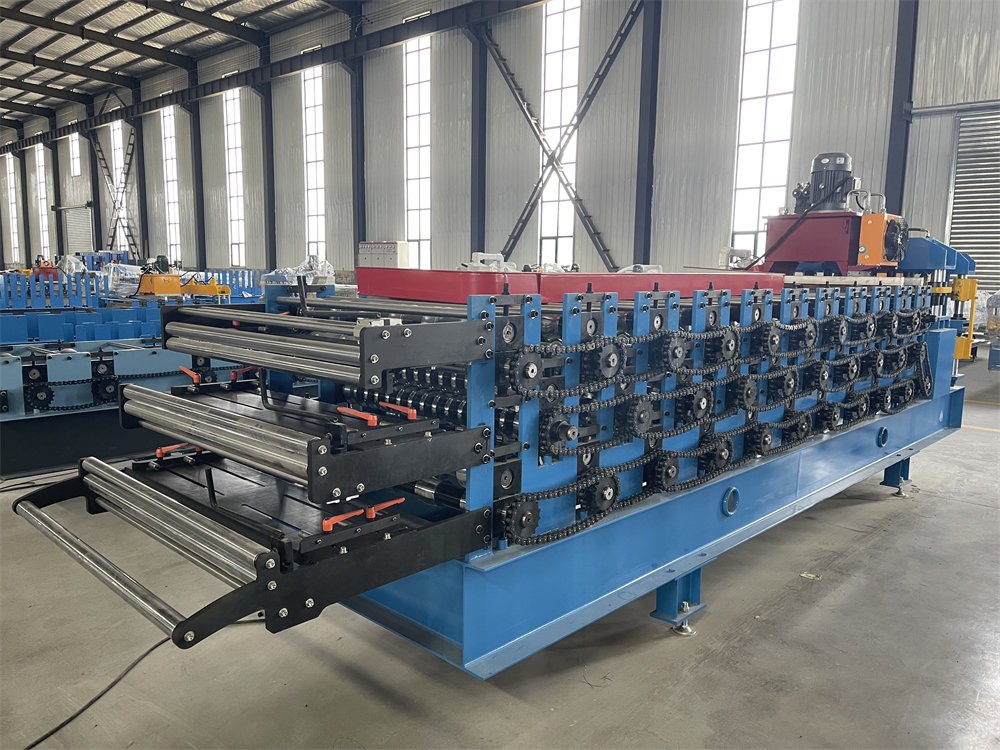

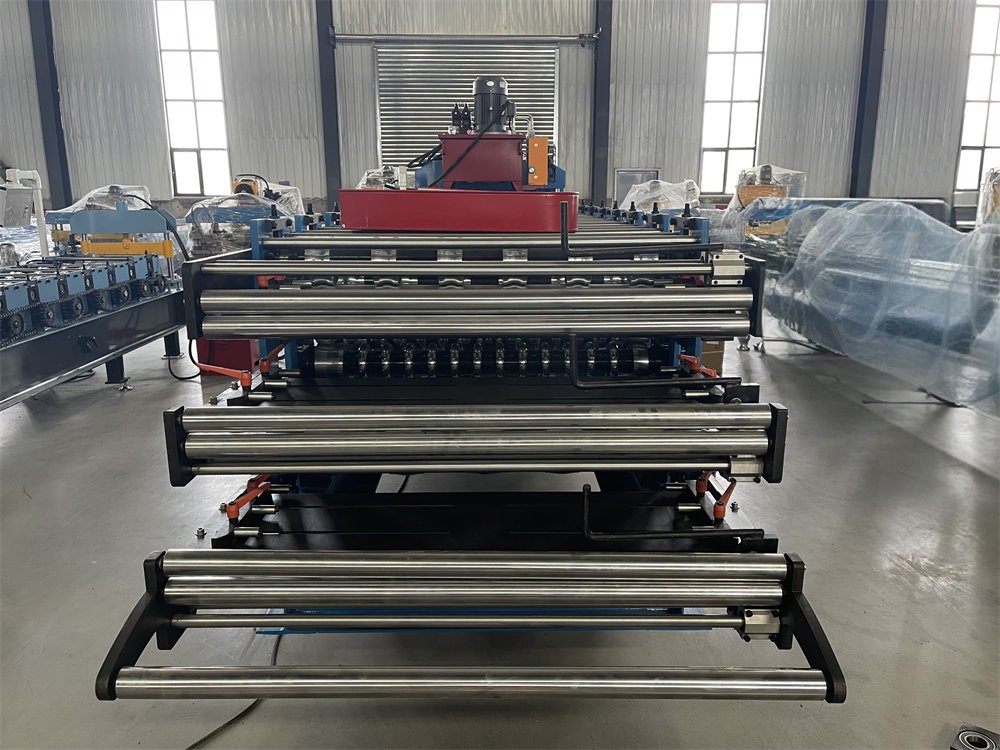

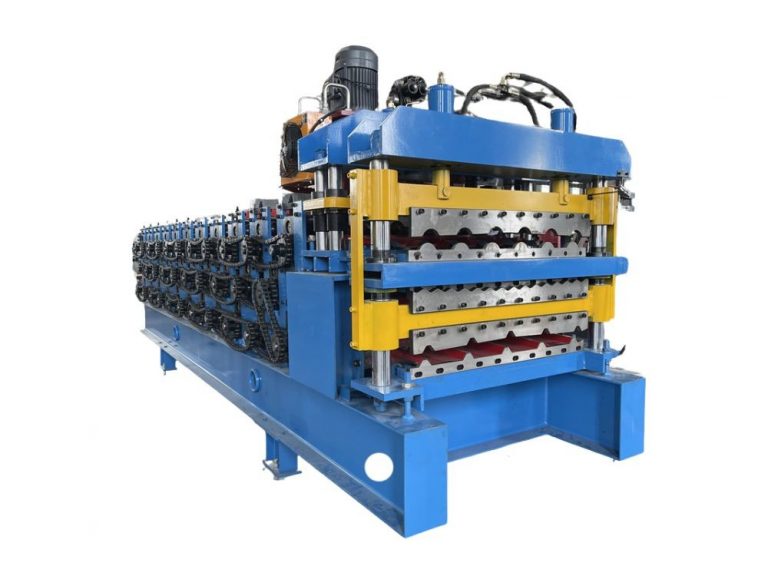

Three layer roll forming machine is our factory’s new product. It has three layers, so it can produce three different shapes on one production line, you can use the three layer one by one, they can not work at the same time. With this machine, you can save more space for your workshop but make more product, the price will also let you satisfied.
Components:
The components of this roof panel machine are: manual/automatic decoiler, roll forming machine, plc control system, hydraulic part, cutting part and discharge table.
Characteristic:
1 High production capacity, A machine capable of producing three types of metal plates.Saves the customer’s production time, improve productivity
2 Easy to fix and operate
3 High operational fluency, beautiful appearance
Parameter
|
Suitable Material |
Material |
GI, PPGI, PPGL |
|
Width |
1220 mm |
|
|
Thickness |
0.3-0.7 mm |
|
|
Material of rollers |
High grade 45# forged steel, surface hard chromium plating |
|
|
Rows of rollers |
Up layer : 11 stations Middle layer : 10 stations Down layer : 11 stations |
|
|
Material of shafts |
High grade 45# forged steel |
|
|
Diameter of shafts |
70 mm |
|
|
Material of blade |
Cr12 Heat Treatment |
|
|
Speed |
10-15 m/min |
|
|
Side plate thickness |
16 mm |
|
|
Chain size |
1 inch |
|
|
Total power |
7.5 kw |
|
|
Voltage |
380V 50HZ 1Phase |
|
|
Appearance size (About) |
5500mm*1600mm*1700mm |
|
|
Weight(About) |
5 tons |
|
|
Electronic control system |
PLC + Touch Screen |
|
|
Color |
Blue, green or yellow or as your requirement |
|
|
Service life |
20 years |
|
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 40 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 30 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. （include chain, bearing, roller,oil pipe, counting wheel） If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
Price: 20000-25000$/set
Min Order: 1set
Place of Origin: Hebei, China
Certification: CE
