Product information:
Gutter cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.

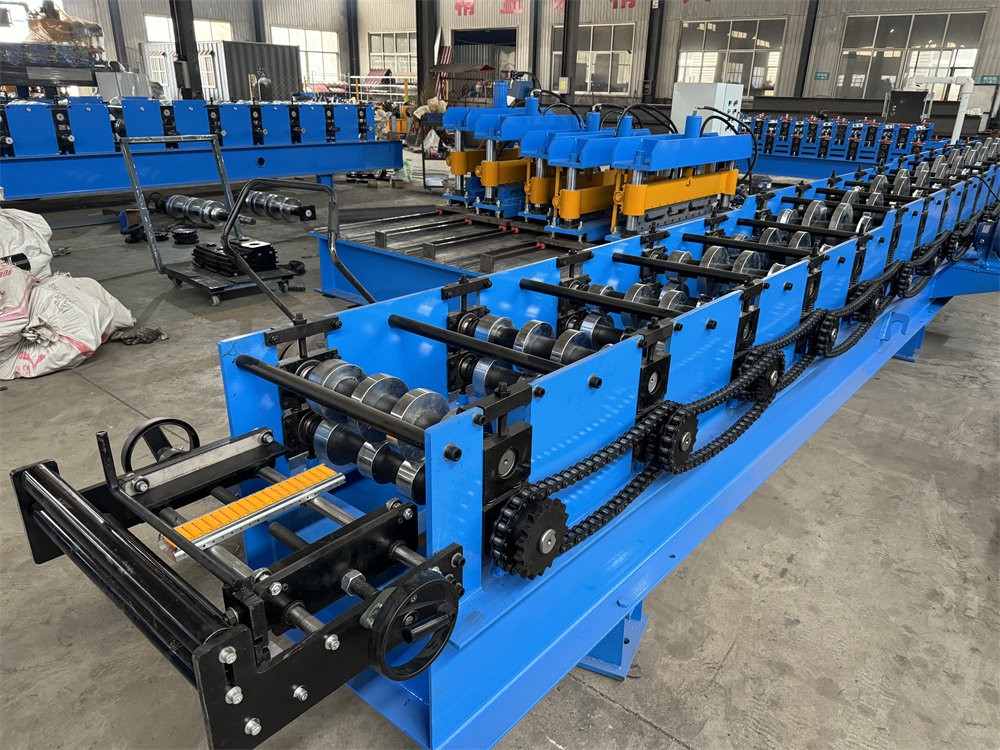

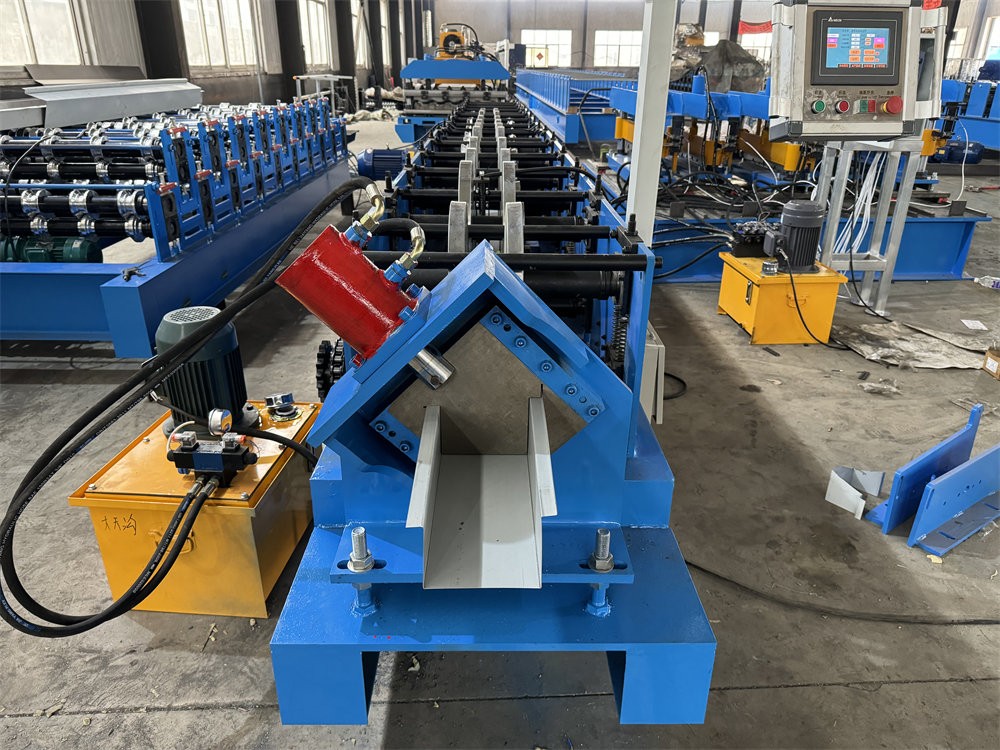

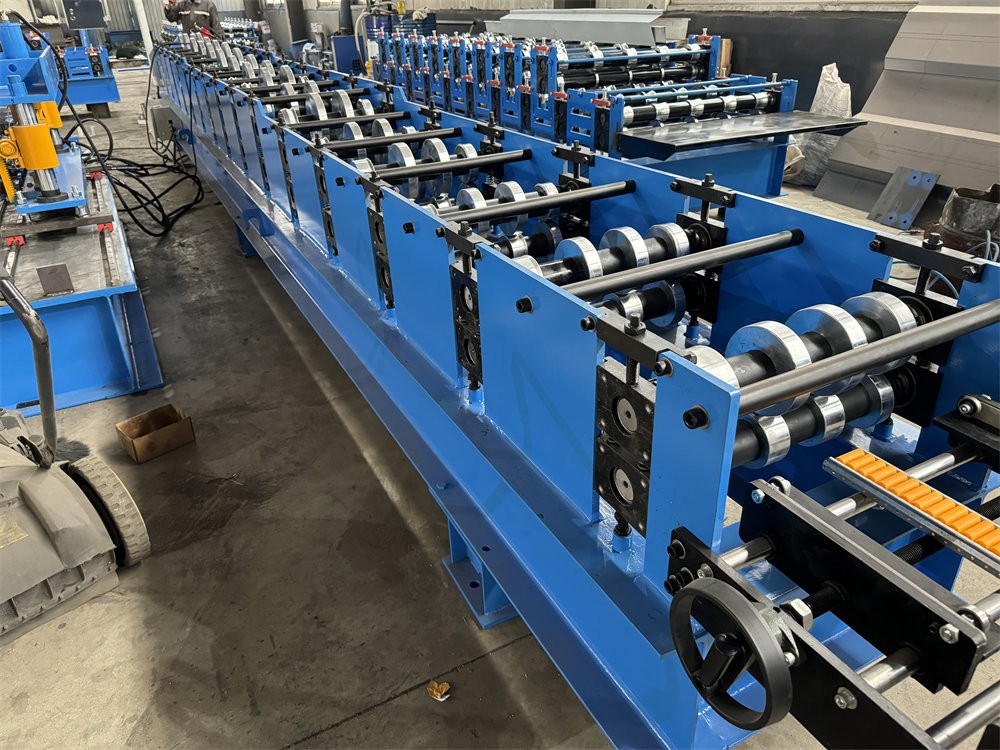

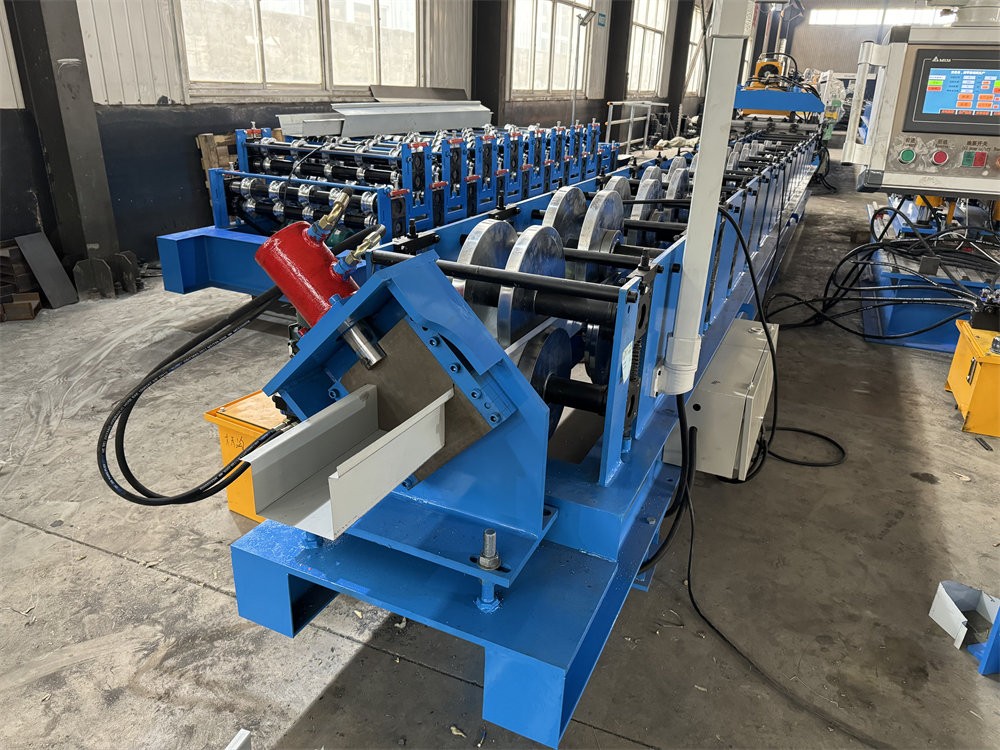

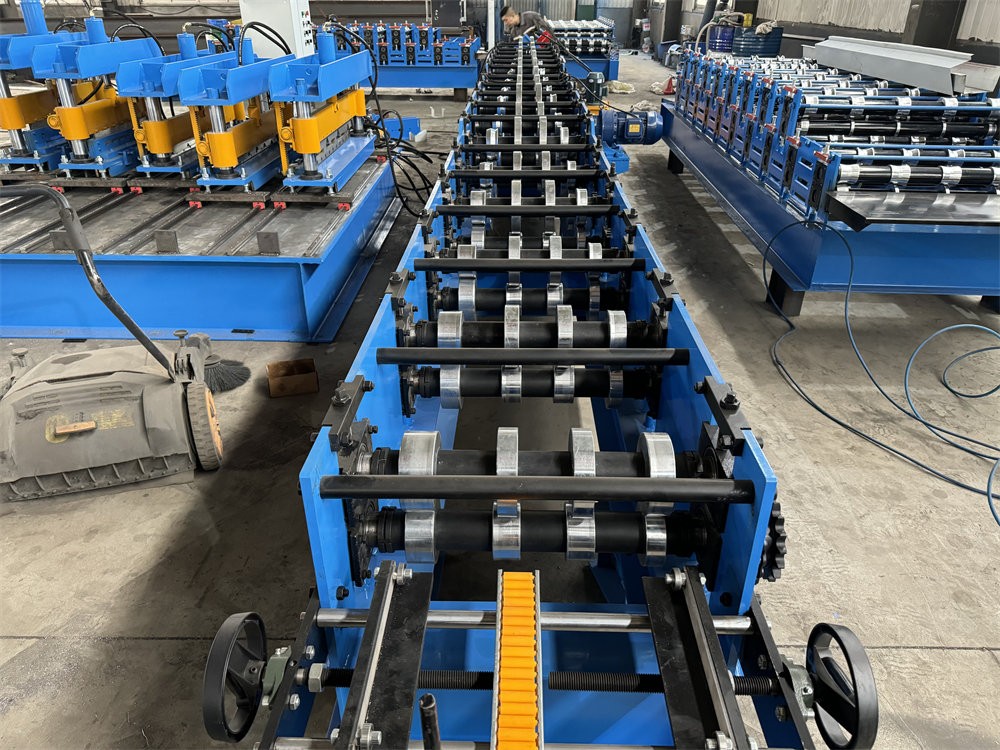

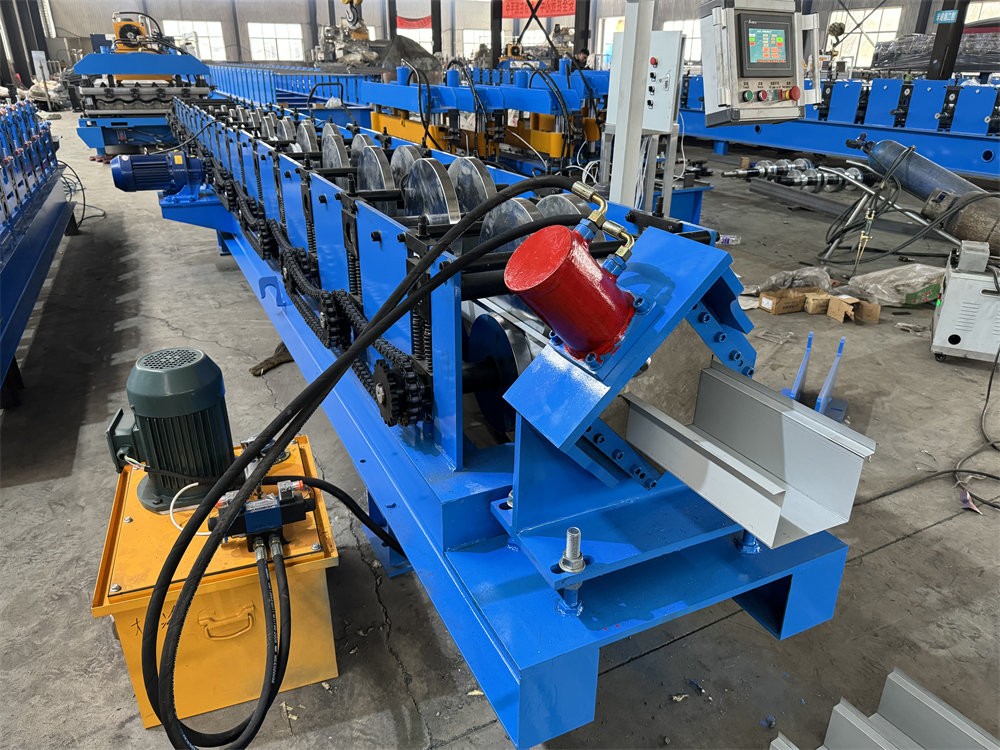

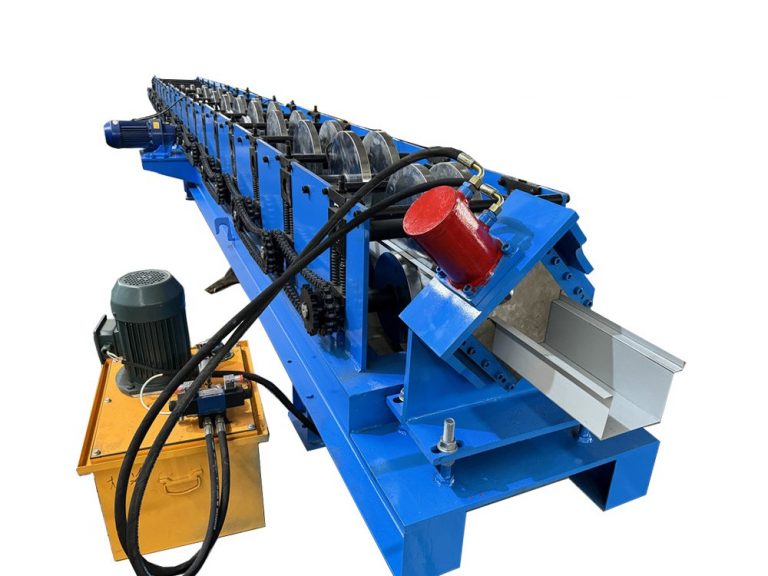

Components of Gutter cold roll forming machine
Gutter cold roll forming machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.
Characteristic
- Widelyused in Daily life
- High efficiency, energy saving
- Environmentally friendly
- It has advantage of pretty appearance
- High quality of material
Parameter
|
material spec |
sheet, galvanized steel sheet, aluminum sheet |
|
width of coil sheet |
281 mm |
|
thickness of coil sheet |
0.3-0.7 mm |
|
roller material |
High grade NO. 45 forged steel with 0.05mm hard chrome plating |
|
shaft material |
High grade NO. 45 carbon wrought steel |
|
cutting blade |
Cr12 mould steel with quenched treatment |
|
diameter of shaft |
60 mm |
|
forming steps |
24 rows |
|
productivity |
10-15 m/min |
|
hydraulic station power |
7.5 KW |
|
hydraulic pressure |
10-12MPa |
|
controlling system |
PLC computer control |
|
appearance size |
9500mm*800mm*1300mm |
|
hydraulic oil |
40# hydraulic oil |
|
Electric tension |
380V 50 Hz 3 Phase or as your requirements |
|
Color |
Blue, green or yellow or as your requirement |
|
Service life |
20 years |
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 20 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 30 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. （include chain, bearing, roller,oil pipe, counting wheel） If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
Price: 7000-8500$/set
Min Order: 1set
Place of Origin: Hebei, China
Certification: CE
